Straight female BNC sockets with crimp nutStraight female BNC sockets with nut designed for fitting onto panels of 3.5 mm thickness maximum. Crimp fitting. Recommended operating frequency | \- 50 Ω: 0 → 4 GHz \- 75 Ω: 0 → 1 GHz ---|--- R.O.S.: | 1.3 max. at 3 GHz Insertion losses: | 0.2 dB/m at 3 GHz H.F. leakages: | –55 dB min. 2 → 3 GHz Insulation resistance: | Min. 5000 MΩ Max. service voltage: | 1500 V eff. on the ground Endurance: | 500 operations Operating temperature: | –65 °C → +165 °C ref. | Ø mm | Stock | ---|---|---|--- Radiall | cable | no. | cable **50 Ω** | | | R 141 306 | 2.6 | 295-7784 | RG 174A/U R 141 308 | 5 | 295-7790 | RG 58C/U **75 Ω** | | | R 142 306 503 | 2.6 | 295-7829 | RG 179B/U ### Radiall BNC 射频同轴连接器黄铜主体连接器，带 PTFE 绝缘体和镀金黄铜中心触点。 某些连接器可提供压接、夹固编织选件和隔板插座。 BNC 插头和隔板插座的商用系列散装供货，每包 100 个。 这些对于标准 Radiall 系列有不同规格。 参见下面技术规格表中的相关详情。**Radiall 标准系列** | | **Radiall商用（散装）** | ---|---|---|--- 工作电压 | 500V | 主体材料 | 压铸锌 耐电压 | 1.5KV | 主体镀层 | 镍 绝缘电阻 | 最小 5GΩ | 触点电阻 | 10mΩ 频率范围 | 直流 → 4GHz 50Ω 直流 → 1GHz 75Ω | 频率范围 | 直流 → 1.5 GHz 气候特征 | 40/155/21 | | 中心冲击电阻 | 最大 2mΩ | | 外部导体电阻 | 最大 0.2Ω | | 压接工具 --- **电缆类型** | **使用压接工具 s** R58, RG59, RG174 | 848-391, 848-436 RG179 | 848-391 附加模具 282-3502 RG12 | 241-8380

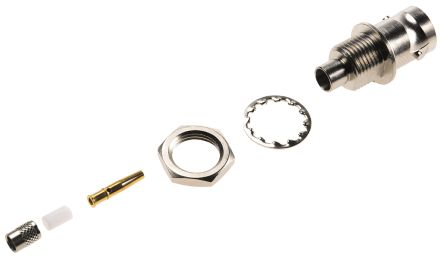

Straight female BNC sockets with crimp nut
Straight female BNC sockets with nut designed for fitting onto panels of 3.5 mm thickness maximum.
Crimp fitting.
Recommended operating frequency | \- 50 Ω: 0 → 4 GHz
\- 75 Ω: 0 → 1 GHz
---|---
R.O.S.: | 1.3 max. at 3 GHz
Insertion losses: | 0.2 dB/m at 3 GHz
H.F. leakages: | –55 dB min. 2 → 3 GHz
Insulation resistance: | Min. 5000 MΩ
Max. service voltage: | 1500 V eff. on the ground
Endurance: | 500 operations
Operating temperature: | –65 °C → +165 °C
ref. | Ø mm | Stock |
---|---|---|---
| cable | no. | cable
**50 Ω** | | |
R 141 306 | 2.6 | 295-7784 | RG 174A/U
R 141 308 | 5 | 295-7790 | RG 58C/U
**75 Ω** | | |
R 142 306 503 | 2.6 | 295-7829 | RG 179B/U
