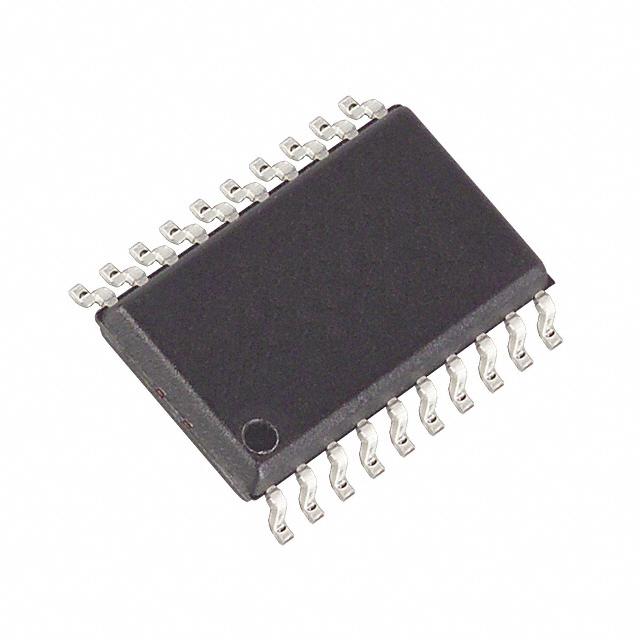

MAX038EWP

高频波形发生器 High-Frequency Waveform Generator

General Description

The MAX038 is a high-frequency, precision function generator producing accurate, high-frequency triangle, sawtooth, sine, square, and pulse waveforms with a minimum of external components. The output frequency can be controlled over a frequency range of 0.1Hz to 20MHz by an internal 2.5V bandgap voltage reference and an external resistor and capacitor. The duty cycle can be varied over a wide range by applying a ±2.3V control signal, facilitating pulse-width modulation and the generation of sawtooth waveforms. Frequency modulation and frequency sweeping are achieved in the same way. The duty cycle and frequency controls are independent.

Features

♦ 0.1Hz to 20MHz Operating Frequency Range

♦ Triangle, Sawtooth, Sine, Square, and Pulse Waveforms

♦ Independent Frequency and Duty-Cycle Adjustments

♦ 350 to 1 Frequency Sweep Range

♦ 15% to 85% Variable Duty Cycle

♦ Low-Impedance Output Buffer: 0.1Ω

♦ Low-Distortion Sine Wave: 0.75%

♦ Low 200ppm/°C Temperature Drift

Applications

  Precision Function Generators

  Voltage-Controlled Oscillators

  Frequency Modulators

  Pulse-Width Modulators

  Phase-Locked Loops

  Frequency Synthesizer

  FSK Generator—Sine and Square Waves
