GA1L4Z

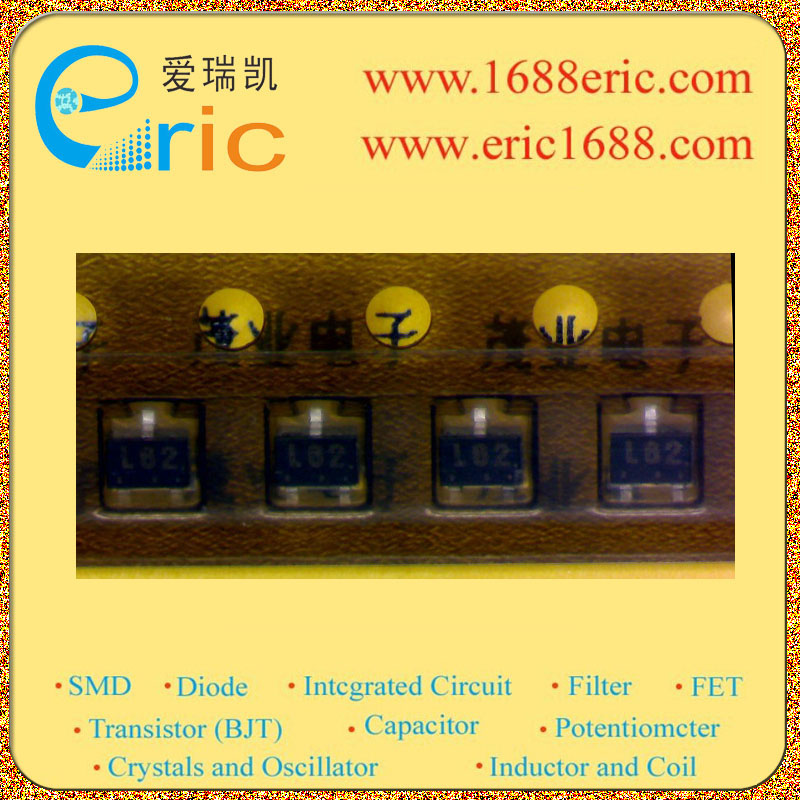

GA1L4Z 带阻NPN三极管 60V 100mA/0.1A 47k 增益135-260 SOT-323/SC-70 marking/标记 L62 中速开关

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| 60V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| 50V 集电极连续输出电流IC Collector CurrentIC| 100mA/0.1A 基极输入电阻R1 Input ResistanceR1| 47KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 电阻比R1/R2 Resistance Ratio| 直流电流增益hFE DC Current GainhFE| 135-260 截止频率fT Transtion FrequencyfT| 耗散功率Pc Power Dissipation| 0.15W/150mW Description & Applications| Features Medium speed switching resistor built-in TYPE NPN transistor Resistors built-in TYPE Comlementary to GN1L4Z 描述与应用| 特性 中速开关电阻内置型NPN 电阻器内置型 对管是 GN1L4Z
