TLD1125EL

1通道高侧电流源的基本LED驱动器 1 Channel High Side Current Source Basic LED Driver

Summary of Features:

.

1 Channel device with integrated output stage current sources, optimized to drive LEDs

.

Output current up to 360mA per channel

.

Low current consumption in sleep mode

.

PWM-operation supported via VS- and EN-pin

.

Output current adjustable via external low power resistor and possibility to connect PTC resistor for LED protection during over temperature conditions

.

Reverse polarity protection

.

Overload protection

.

Undervoltage detection

.

Open load and short circuit to GND diagnosis

.

Wide temperature range: -40 °C < Tj < 150 °C

.

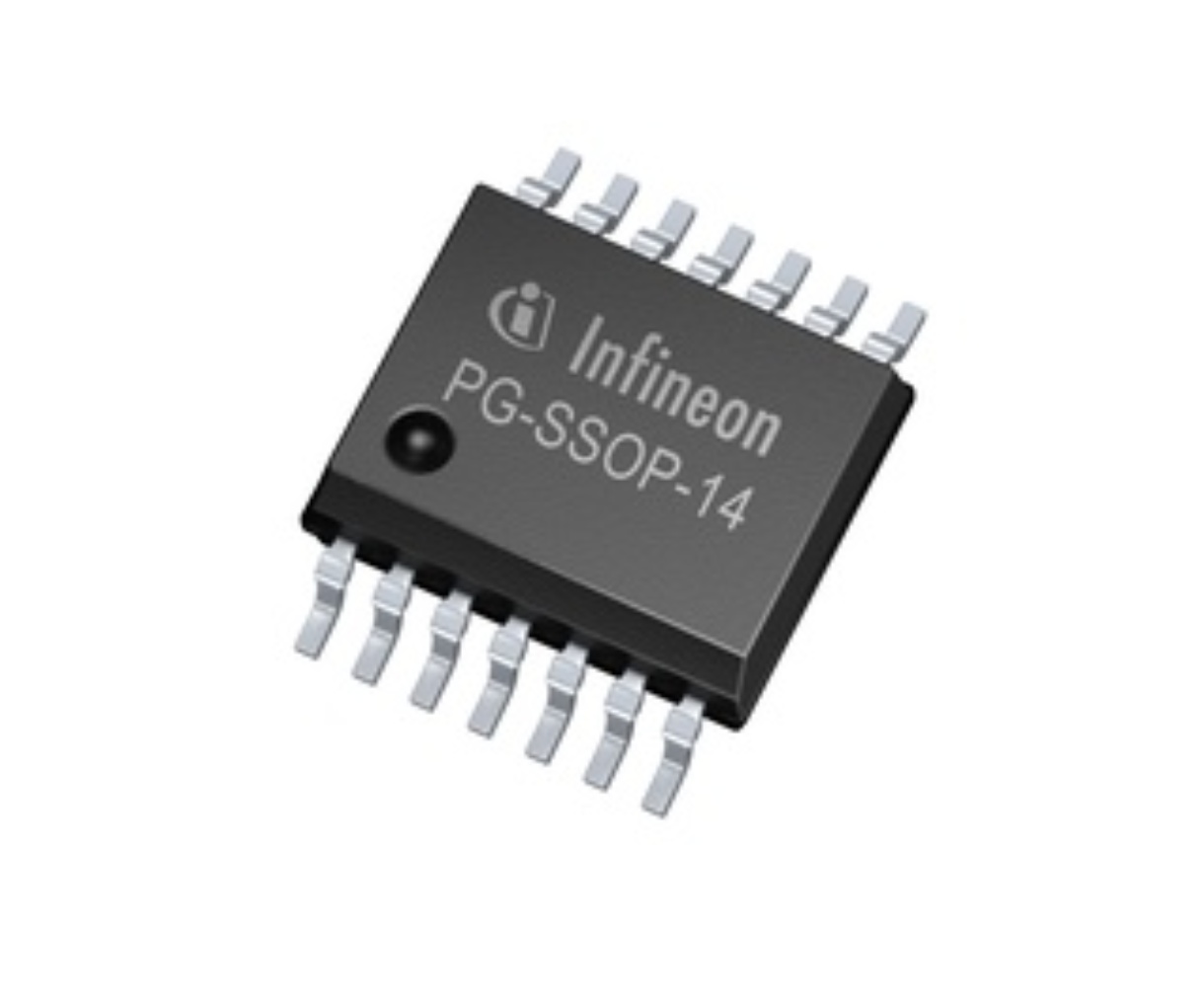

PG-SSOP14 package with exposed heatslug

.

Green Product RoHS compliant

.

AEC Qualified
