SY100EPT21LZCTR

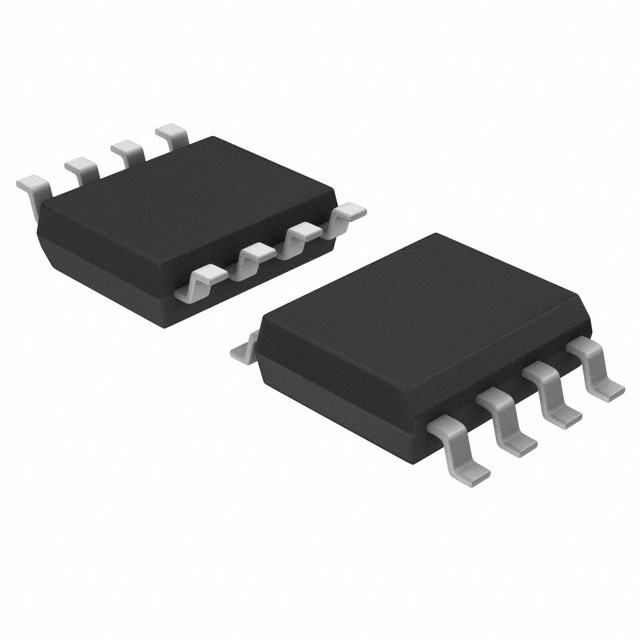

IC TRANSLATOR DIFF 3.3V 8-SOIC

DESCRIPTION

The SY100EPT21L is a single, differential LVPECL to-LVTTL translator using a single +3.3V power supply. Because low voltage positive ECL LVPECL levels are used, only +3.3V and ground are required. The small outline 8-pin SOIC package and low-skew, single-gate design make the EPT21L ideal for applications that require the translation of a clock or data signal where minimal space, low power, and low cost are critical. VBB allows a differential, single-ended, or AC-coupled interface to the device. If used, the VBB output should be bypassed to VCC with 0.01µF capacitor.

Under open input conditions, the /D will be biased at a VCC/2 voltage level and the D input will be pulled to ground. This condition will force the Q output low to provide added stability.

FEATURES

■ Guaranteed over the industrial temperature range: –40°C to +85°C

■ Pin-for-pin; plug-in replacement to MC100EPT21D/DT

■ 3.3V power supply

■ 1.9ns typical propagation delay

■ 275MHz fMAX Clock

■ Differential LVPECL inputs

■ 24mA LVTTL output

■ Flow-through pinout

■ Q output will default LOW with inputs open

■ VBB output

■ Available in 8-pin MSOP and SOIC packages

APPLICATIONS

■ ASIC/FPGA interface

■ Legacy interface

■ Precision differential-to-general purpose, single ended translation
