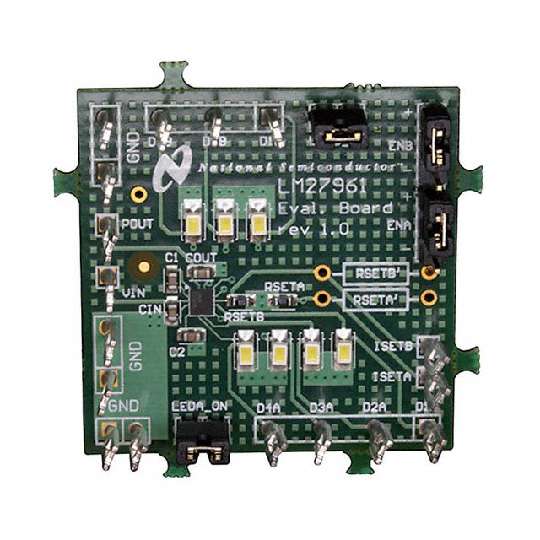

LM27961TLEV

Evaluation Board For Dual-Display White LED Driver With 3/2X Switched Capacitor Boost

The LM27961 is a charge-pump-based white- driver that is ideal for mobile phone display backlighting. It is intended to drive 4 LEDs for a main phone display backlight and 3 LEDs for a sub-display backlight. Regulated internal current sources deliver excellent current and brightness matching in all LEDs. The LM27961 works off an extended Li-Ion input voltage range 2.7V to 5.5V. Voltage boost is achieved with a high-efficiency 3/2x-gain charge pump. The LM27961 is available in "s chip-scale 18-bump micro SMD package.
