MSR516NPR

Audio 5VDC 16VDC 12mA 88dBA/96dBA 3200Hz to 4200Hz Pin Through Hole

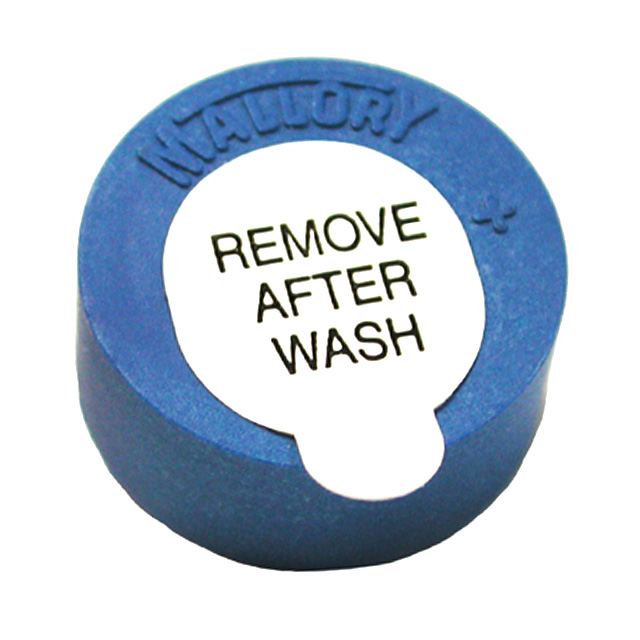

Sonalert Extra Loud MSR type are piezoelectric audible signal devices with a built-in oscillator circuit. All devices are suitable for wave soldering when ordered with the sound emission hole covered with a wash label. The recommended maximum temperature and exposure time for wave soldering is +270 C for 3 seconds.

**Cont. Tone; 3-20Vdc; 80dB; 3.4kHz; 23x10.5mm; PC Pins**

Features:

* Optional wash label may be ordered by adding "S" to model number

* Low Power Consumption

* Low Cost

* Compact Profile

* Piezo Tone Quality

* Wave Solderable

* Extra Loud Sound Output

Applications

* Fire Alarm

* Automotive

* Medical and Electrical Instruments

* Crime Prevention Alram

* Clocks
