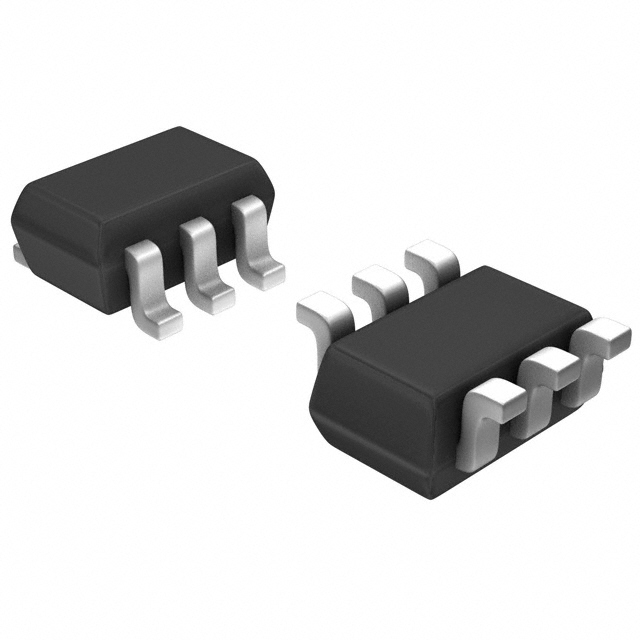

SN74GTL3004DCKRG4

可选择的GTL参考电压 SELECTABLE GTL VOLTAGE REFERENCE

DESCRIPON

The SN74GTL3004 provides for a selectable GTL Voltage Reference GTL VREF. The value of the GTL VREF can be adjusted using S0 and S1 select pins.

The S0 and S1 pins contain glitch-suppression circuitry for excellent noise immunity. When left floating, the S0 and S1 control input pins have 100-kΩ pullups that set the GTL VREF default value to the 0.67 × VTT ratio S0 = 1 and S1 =1.

FEATURES

• VDD Range: 3.0 V to 3.6 V

• VTT Range: 1 V to 1.3 V

• Provides Selectable GTL VREF

– 0.615 × VTT

– 0.63 × VTT

– 0.65 × VTT

– 0.67 × VTT

• ±1% Resistor Ratio Tolerance

• Ambient Temperature Range: –40°C to 85°C

• ESD Protection Exceeds the Following Levels Tests Tested Per JESD-22:

– 2500-V Human-Body Model A114-B, Class II

– 250-V Machine Model A115-A

– 1500-V Charged-Device Model C101
