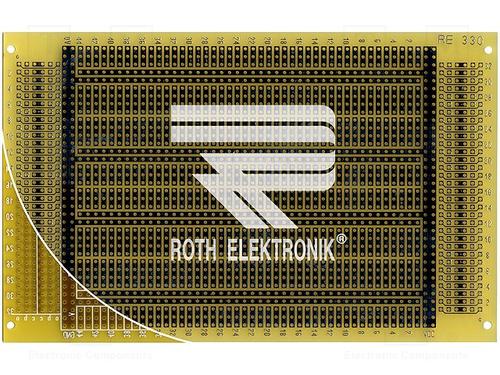

RE330-LF

ROTH ELEKTRONIK  RE330-LF  原型板, FR4, 环氧玻璃复合, 1.5mm, 100mm x 160mm

The is a Prototype Labour Card with 2.54mm pitch spacing. It is made up of FR4 epoxy fibre glass composite.

.

Single-sided 35µm Cu

.

Component print

.

3 and 4-hole Soldering pads

.

2x Connector 32/64/96-channel DIN 41612 type-C
