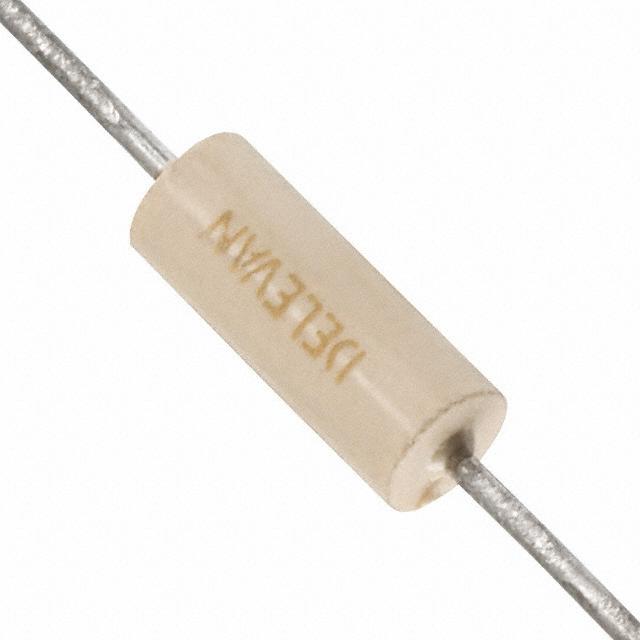

1025R-52K

Inductor; RF; Ind 22uH; Tol 10%; Cur 144mA; Axial; DCR 3.3Ω; SRF 25MHz

Molded Unshielded RF Inductor Coils

** Military Specifications:

** MS75083 LT4K

MS75084 LT10K

MS75085 LT10K

** Operating Temperature Range:**

** LT4K** : -55°C to +125°C

** LT10K** : -55°C to +105°C

** Current Rating at 90°C Ambient:**

** LT4K** : 35°C Rise

** LT10K** : 15°C Rise

** Maximum Power Dissipation at 90°C:**

** Phenolic** : ** LT4K** : 0.21 W

** Iron** : ** LT10K** : 0.09 W

** Ferrite** : ** LT10K:** 0.073 W

**

Optional Tolerances:

.

* 5%, 3%, 2% and 1% available

+/- 10% tolerance. Maximum power dissipation for phenolic is 0.21 W, iron- 0.09 W, ferrite- 0.073 W.
