ABBTM-2.4GHZ-51

2.4GHz, Size 20.0 x 13.4 x 2.2mm, Csr Bc05 Multimedia External Core, 16Mbit Onboard Flash Memory.

* Bluetooth Spec v2.0+EDR Compliant * Class 2, up to 10-meter range * Complete 2.4GHz Bluetooth® System * Power management: low power 1.8V operation for Bluetooth® core * Compact size: 26.9mm L x 13 W mm x 2.5mm H * Bluetooth® Profile Supported: SPP * Internal antenna * On-board flash memory 8Mbits * Surface mount module for embedded applications * Several firmware options * Rewritable flash memory for easy upgrade route * Custom firmware production available

立创商城:
ABBTM-2.4GHZ-51

艾睿:
RF TX-RX MODULE BLUETOOTH

安富利:

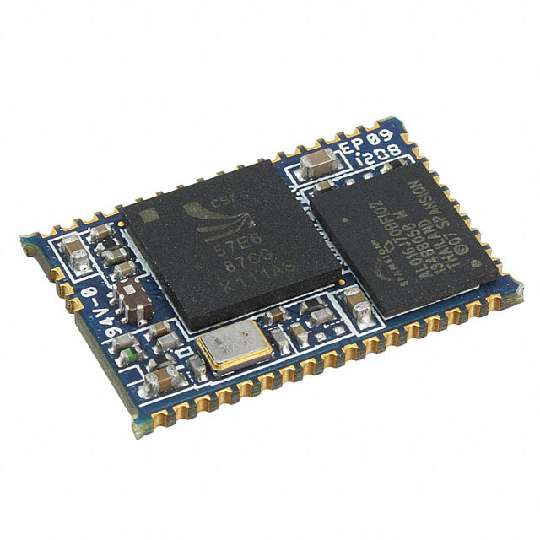

ABBTM is a complete Bluetooth® solution. It is built on CSR BC04-External Core and 8Mbit Flash memory. It’s a short range, compact and cost effective module. Designed to be embedded into electronic devices needing Bluetooth® connectivity. The ABBTM module is a power class2 Bluetooth® device, and is in compliance with version 2.0+EDR of the Bluetooth® specification. It includes CSR BC04-External Core and 8Mbit Flash memory, internal antenna, supporting circuitry, together with higher-level software protocols and applications such as L2CAP, SDP and GAP are resident in the flash memory.
