120408-HMC709LC5

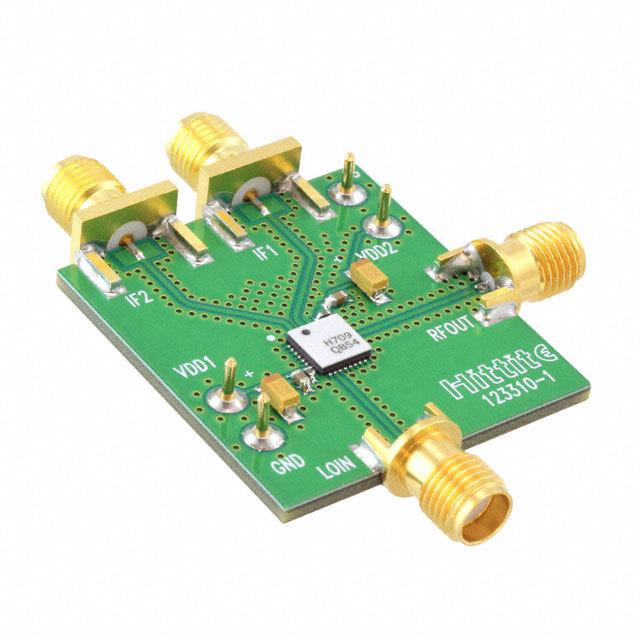

HMC709LC5 Up-Down Converter and Mixer Evaluation Board

series 升频器 For Use With HMC709LC5

得捷:
EVAL BOARD HMC709LC5

艾睿:
GAAS MMIC I/Q UPCONVERTER 11 - 17 GHZ

安富利:
The HMC709LC5 is a compact GaAs MMIC I/Q upconverter in a leadless RoHS compliant SMT package. This device provides a small signal conversion gain of 13 dB with -20 dBc of sideband rejection. The HMC709LC5 utilizes a driver amplifier preceded by an I/Q mixer which is driven by an LO buffer amplifier. IF1 and IF2 mixer inputs are provided and an external 90° hybrid is needed to select the required sideband. The I/Q mixer topology reduces the need for filtering of the unwanted sideband. The HMC709LC5 is a much smaller alternative to hybrid style single sideband upconverter assemblies and it eliminates the need for wire bonding by allowing the use of surface mount manufacturing techniques.

Win Source:
EVAL BOARD HMC709LC5 / HMC709LC5 series Upconverter Evaluation Board
