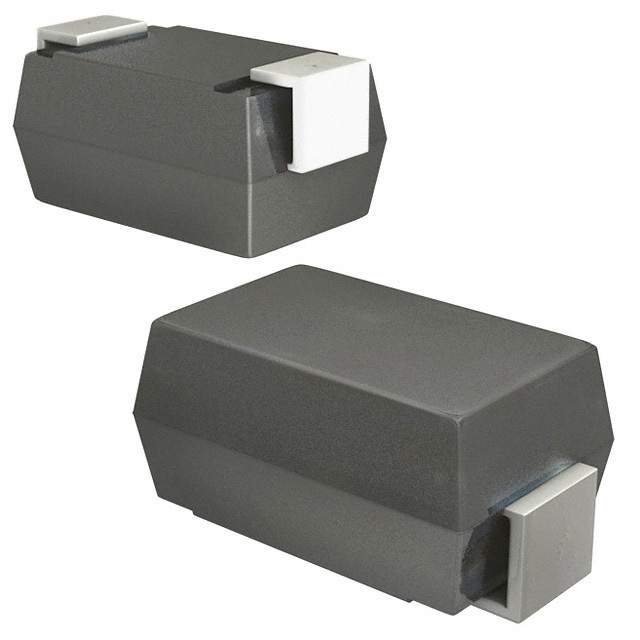

SMAJ51A-TP

ESD 抑制器/TVS 二极管 51V 400 Watts

400 Watt Transient Voltage Suppressors 5.0 to 440 Volts

Features

•  For Surface Mount Applications

•  Unidirectional And Bidirectional

•  Low Inductance

•   High Temp Soldering: 260°C for 10 Seconds At Terminals

•   For Bidirectional Devices Add “C” To The Suffix of The Part Number: i.e.SMAJ5.0CA for 5% Tolerance

•   UL Recognized File # E331408

•   Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information

立创商城:
单向 Vrwm:51V 400W

得捷:
TVS DIODE 51VWM 82.4VC DO214AC

贸泽:
ESD 抑制器/TVS 二极管 51V 400 Watts

艾睿:
This SMAJ51A-TP TVS diode from Micro Commercial Components protects against overvoltages. Its test current is 1 mA. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 400Min W. This device&s;s maximum clamping voltage is 82.4 V and minimum breakdown voltage is 56.7 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Uni-Dir 51V 400W 2-Pin SMA T/R

Verical:
Diode TVS Single Uni-Dir 51V 400W 2-Pin SMA T/R
