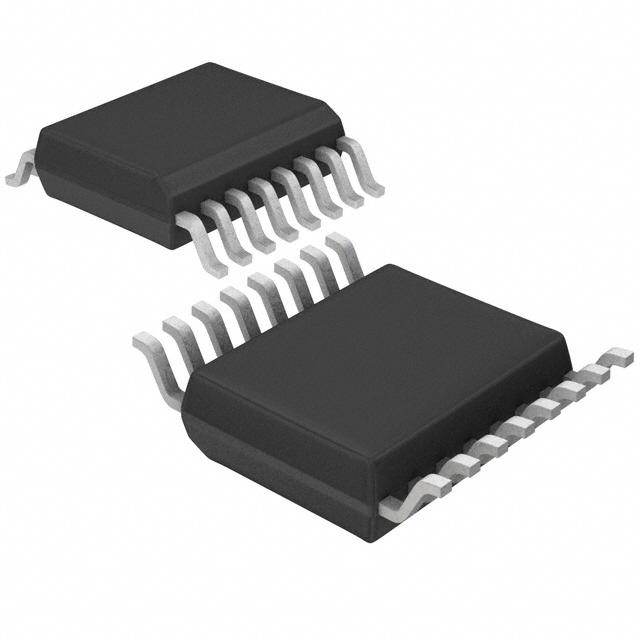

DG212BDQ-E3

改进的四路CMOS模拟开关 Improved Quad CMOS Analog Switches

DESCRIPTION

The DG211B, DG212B analog switches are highly improved versions of the industry-standard DG211, DG212. These devices are fabricated in VishaySiliconix’ proprietary silicon gate CMOS process, resulting in lower on-resistance, lower leakage, higher speed, and lower power consumption.

FEATURES

• ± 22 V supply voltage rating

• TTL and CMOS compatible logic

• Low on-resistance - RDSon: 50Ω

• Low leakage - IDon: 20 pA

• Single supply operation possible

• Extended temperature range

• Fast switching - tON: 120 ns

• Low charge injection - Q: 1 pC
