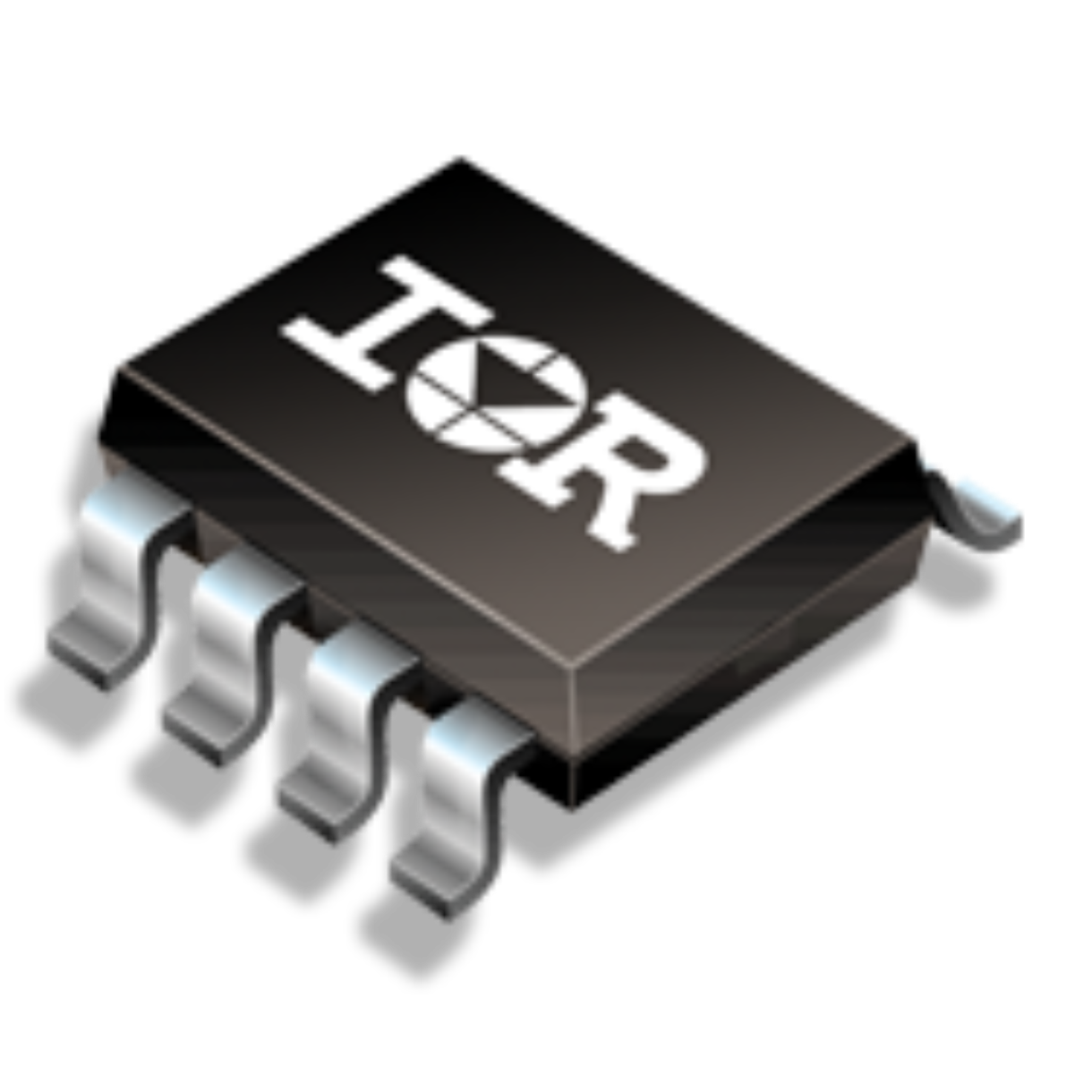

IRS2181S

600V High and Low Side Driver IC with typical 1.9A source and 2.3A sink currents in 8 Lead SOIC package for IGBTs and MOSFETs. Also available in 8 Lead PDIP, 14 Lead SOIC, 14 Lead PDIP, and 14 Lead MLPQ 4X4.

Summary of Features:

.

Floating channel designed for bootstrap operation

.

Fully operational to +600 V

.

Tolerant to negative transient voltage, dV/dt immune

.

Gate drive supply range from 10 V to 20 V

.

Undervoltage lockout for both channels

.

3.3 V and 5 V input logic compatible

.

Matched propagation delay for both channels

.

Logic and power ground +/- 5 V offset

.

Lower di/dt gate driver for better noise immunity

.

Output source/sink current capability 1.4 A/1.8 A
