ADM00678

演示板, USB至I2C/UART 主转换器桥

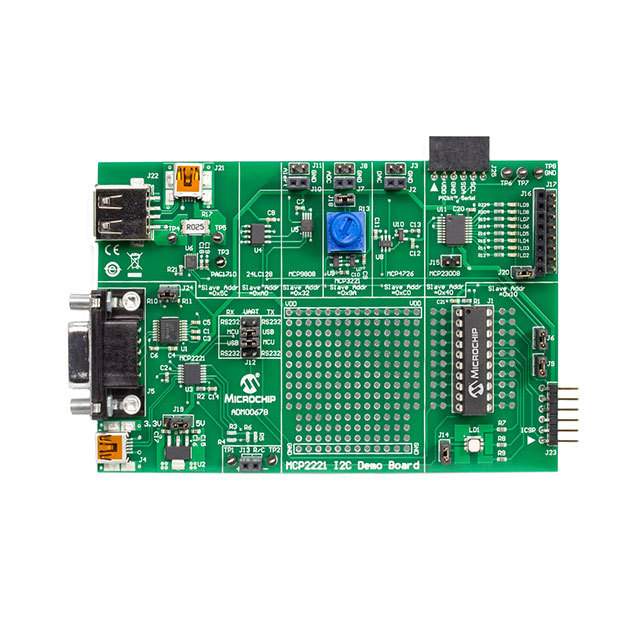

The from is a MCP2221 I2C demonstration board. The MCP2221 I2C demonstration board allows the user to communicate through a PC application to I2C slave devices by using the MCP2221 device as USB to I2C master converter bridge. The board can also work at the same time as a USB to RS232 UART bridge.

.

Users can perform measurements for resistors or capacitors, using MCP2221 device"s ADC and GPIO pins

.

Real-time monitoring and logging of current and power consumptions of a USB device using PAC1710 IC

.

Real time monitoring and logging of ambient temperature using MCP9808 temperature sensor

.

Configuration and control of up to 8 GPIOs, available from the MCP23008 I/O expander

.

PIC16F1509 configuration to issue multiple warnings through an RGB LED

.

Output voltage level control of the MCP4726 DAC

.

Creating a USB to RS232 bridge, based on the MCP2221 device and a TI"s MAX3232 transceiver

.

5V or 3.3V user-selectable VDD, up to 500mA operating capability

.

A small prototyping area which includes extensions of the board"s power VDD and ground GND lines

.

ICSP male connector to debug or program PIC16F1509 using a PICkit 3 programmer
