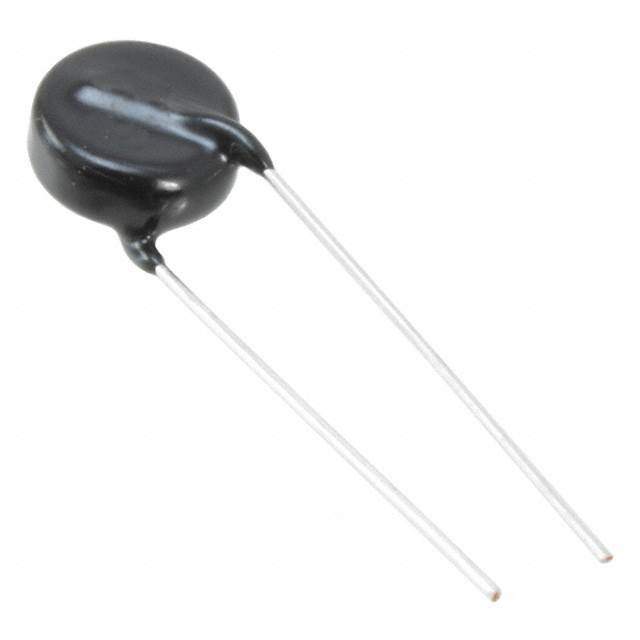

ERZ-E11A102

压敏电阻 ERZ-E 11mm 1000V Blk ZNR Surge Absorber

变阻器 电路 通孔 圆片式 13mm

得捷:
VARISTOR 1KV 5KA DISC 13MM

立创商城:
ERZ-E11A102

贸泽:
压敏电阻 ERZ-E 11mm 1000V Blk ZNR Surge Absorber

艾睿:
Apply different voltages to this ERZ-E11A102 MOV from Panasonic in order to change resistance of it. Its maximum surge current is 5000 A. This device&s;s clamping current is 50 A and clamping voltage is 1650 V. This part has a pitch of 7.5 mm. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This product is 18 mm tall and 9.5 mm deep with a diameter of 14 mm. This device is made with metal oxide technology. Its capacitance value is 220pF. The maximum AC voltage rating is 625 VAC and the maximum DC voltage rating is 825 VDC. This varistor has a voltage of 1000 V.

Chip1Stop:
Var MOV 625VAC/825VDC 5000A 1000V Radial Bulk

Verical:
Var MOV 625VAC/825VDC 5000A 1000V Radial Bulk

MASTER:
Var MOV 625VAC/825VDC 5000A 1000V Radial Bulk

Online Components:
Var MOV 625VAC/825VDC 5000A 1000V Radial Bulk

Electro Sonic:
Var MOV 625VAC/825VDC 5000A 1000V Radial Bulk
