MB2011SS2G13

按钮开关 SPDT ON-ON .4VA BRACKET PC

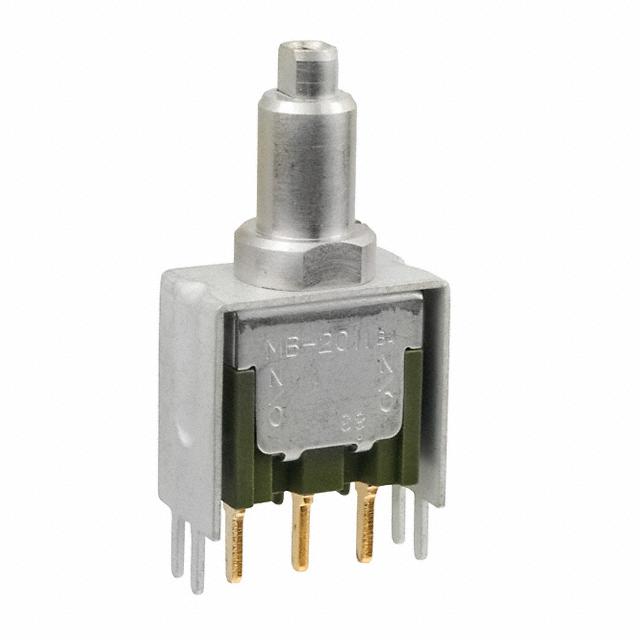

Series MB2000 miniature pushbutton switches are designed with an all metal switch action to ensure a 100,000 minimum mechanical life and a resin case to provide isolation between circuits. Although not process sealed Series MB2000 miniature pushbutton switches do have epoxy sealed terminals to prevent entry of solder flux, and other liquid agents, into the switch action.

得捷:
SWITCH PUSH SPDT 0.4VA 28V

立创商城:
MB2011SS2G13

贸泽:
按钮开关 SPDT ON-ON .4VA BRACKET PC

艾睿:
Ideal for quick switching situations this MB2011SS2G13 push button switch manufactured from NKK Switches is a must. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The MB2011SS2G13 push switch has a PC pin termination style. This product is 16.2 mm long and 9 mm. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
Switch, ON-ON, Plunger for Screw-on Caps, .335In Smooth

Verical:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact Bracket Mount/Through Hole PC Pins

Powell:
MINIATURE PUSHBUTTON/MULTI-FUNCTION
