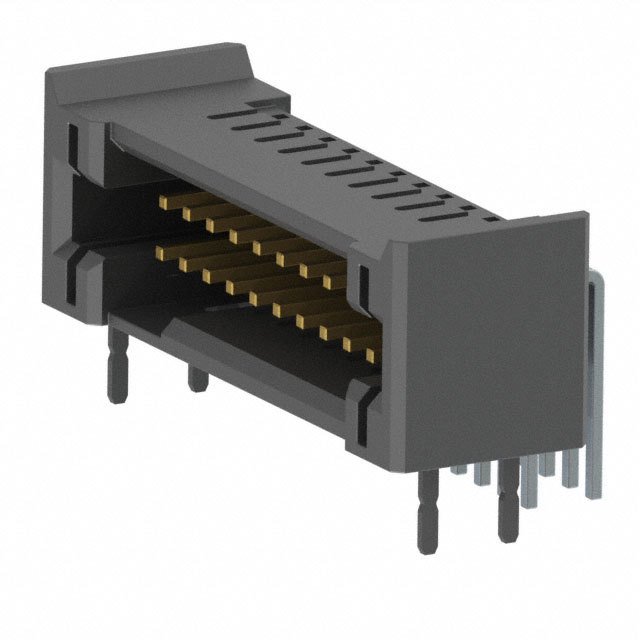

TFM-110-01-S-D-RE2-WT

SAMTEC TFM-110-01-S-D-RE2-WT Wire-To-Board Connector, 1.27mm, 20Contacts, Header, TFM Series, Through Hole, 2Rows

针座 通孔，直角 20 位置 0.050"（1.27mm）

欧时:
Tiger Eye HDR .050" 20p

得捷:
CONN HEADER R/A 20POS 1.27MM

艾睿:
Use this shrouded TFM-110-01-S-D-RE2-WT header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 1.27 mm. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. TFM-110-01-S-D-RE2-WT is housed in black liquid crystal polymer. It uses the solder termination method. This product is 19.38 mm long, 6.48 mm tall and 8.5 mm deep.

安富利:
Conn Shrouded Header HDR 20 POS 1.27mm Solder RA Thru-Hole Tube

Newark:
# SAMTEC  TFM-110-01-S-D-RE2-WT  Wire-To-Board Connector, 1.27 mm, 20 Contacts, Header, TFM Series, Through Hole, 2 Rows
