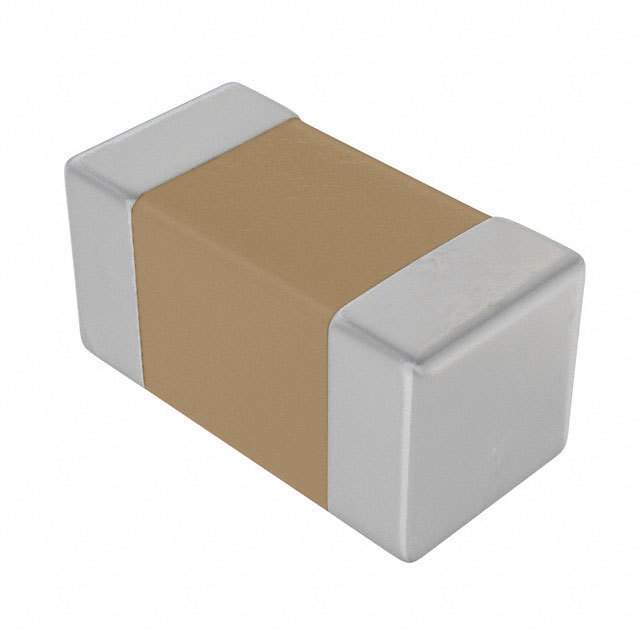

C0603C394K8PACTU

多层陶瓷电容器, 表面贴装, 0.39 µF, 10 V, 0603 [1608 公制], ± 10%, X5R, C系列KEMET

* **Working Voltage:**

10, 16, 25, 50, 100 & 200V

* **Dielectric:**

C0G NP0, X7R, X5R, Z5U & Y5V

* ** Tolerance: **

±0.10pF; ±0.25pF; ±0.5pF; ±1%; ±2%; ±5%; ±10%; ±20% & ±80%-20%

Ceramic chips consist of formulated ceramic dielectric materials which have been fabricated into thin layers, interspersed with metal electrodes alternately exposed on opposite edges of the laminated structure. The entire structure is then fired at high temperature to produce a monolithic block which provides high capacitance values in a small physical volume. After firing, conductive terminations are applied to opposite ends of the chip to make contact with the exposed electrodes. Kemet ceramic chip capacitors are offered in the five most popular temperature characteristics: C0G NP0 ,X7R, X5R,Z5U & Y5V.
