MAX3204EEWT+T

低电容， 2/3/ 4/6通道， 【 15kV的ESD保护阵列，用于高速数据接口 Low-Capacitance, 2/3/4/6-Channel, ±15kV ESD Protection Arrays for High-Speed Data Interfaces

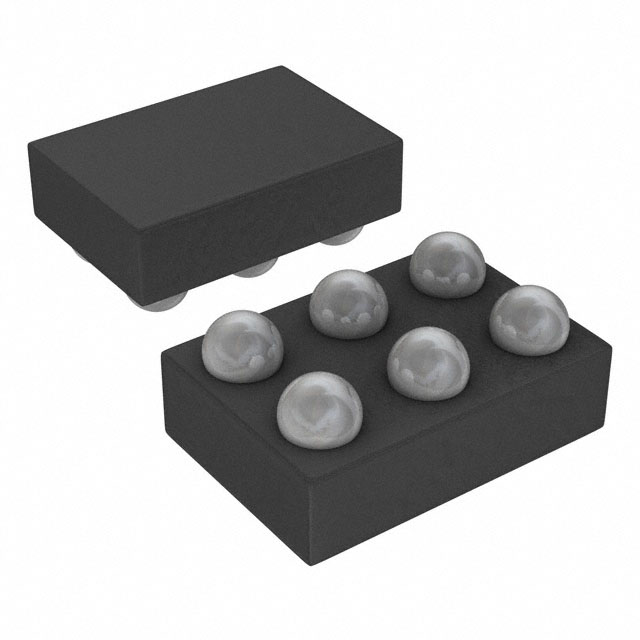

\- 夹子 - Ipp TVS - 表面贴装型 6-WLP（1.57x1.05）

得捷:
TVS DIODE 6WLP

安富利:
The MAX3202E/MAX3203E/MAX3204E/MAX3206E are low-capacitance ±15kV ESD-protection diode arrays designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steer ESD current pulses to VCC or GND. The MAX3202E/MAX3203E/MAX3204E/MAX3206E protect against ESD pulses up to ±15kV Human Body Model, ±8kV Contact Discharge, and ±15kV Air-Gap Discharge, as specified in IEC 61000-4-2. These devices have a 5pF capacitance per channel, making them ideal for use on high-speed data I/O interfaces.The MAX3202E is a two-channel device intended for USB and USB 2.0 applications. The MAX3203E is a triple-ESD structure intended for USB On-the-Go OTG and video applications. The MAX3204E is a quad-ESD structure designed for Ethernet and FireWire® applications, and the MAX3206E is a six-channel device designed for cell phone connectors and SVGA video connections.All devices are available in tiny 4-bump 1.05mm x 1.05mm WLP, 6-bump 1.05mm x 1.57mm WLP, 9-bump 1.52mm x 1.52mm WLP, 6-pin 3mm x 3mm TDFN, and 12-pin 4mm x 4mm TQFN packages and are specified for -40°C to +85°C operation.
