UPZ2W240MND9

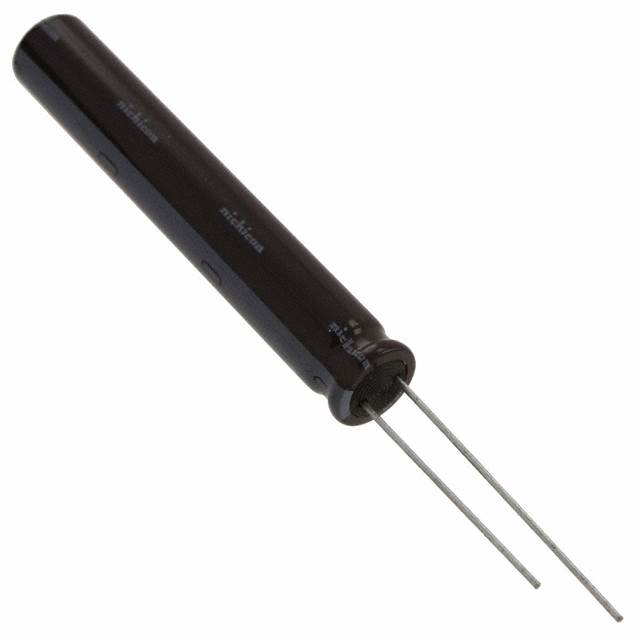

NICHICON  UPZ2W240MND9  铝电解电容, 24uF, 450V, 径向引线

**Features:

**

* High Ripple Current

* Load Life of 2000 Hours at 105°C

* Suited for Ballast Applications

* Compliant to the RoHS Directive 2002/95/IEC

立创商城:
24uF ±20% 450V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 450V 24uF 250mArms +/-20% at 120Hz

e络盟:
铝电解电容, 24uF, 450V, 径向引线

艾睿:
This electrolytic UPZ2W240MND9 aluminum capacitor from Nichicon combines low cost, high capacitance and high energy density all in one tiny component. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. This product is 50 mm tall with a diameter of 8 mm. It has a tolerance of 20%. The UPZ2W240MND9 aluminum electrolytic capacitor has a radial termination style. Its leakage current is 532@1Min μA. Its capacitance value is 24uF.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 24 uF; Tol 20%; Vol-Rtg 450 VDC; Radial

Verical:
Cap Aluminum Lytic 24uF 450V 20% 8 X 50mm Radial 3.5mm 250mA 2000h 105C Bulk

Newark:
# NICHICON  UPZ2W240MND9  Electrolytic Capacitor, Miniature, 24 µF, 450 V, PZ Series, ± 20%, Radial Leaded
