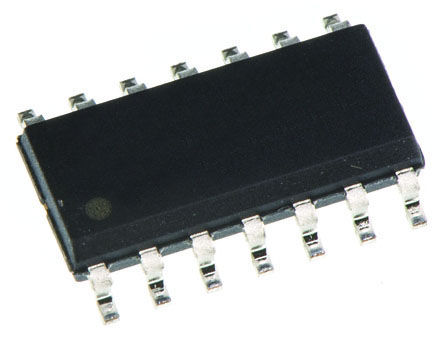

TLV2774AID

CMOS 运算放大器### 运算放大器，Texas Instruments

The is a quad Operational Amplifier with rail-to-rail output. The CMOS operational amplifier combines high slew rate and bandwidth, high output drive and excellent DC precision. The device provides 10.5V/µs of slew rate and 5.1MHz of bandwidth while only consuming 1mA of supply current per channel. This AC performance is much higher than current competitive CMOS amplifier. The rail-to-rail output swing and high output drive make this device a good choice for driving the analog input or reference of analog-to-digital converters. This device also has low distortion while driving a 600R load for use in telecom systems. This amplifier has a 360µV input offset voltage, a 17nV/√Hz input noise voltage and a 2pA input bias current for measurement.

.

0.005% THD+N

.

1mA/channel Supply current

.

2pA Input bias current

.

<1µA Micropower shutdown mode

.

2µV/°C Typical offset drift

.

96dB Typical CMRR

.

Green product and no Sb/Br
