TLK1501EVM

界面开发工具 TLK1501 SerDes Eval Mod

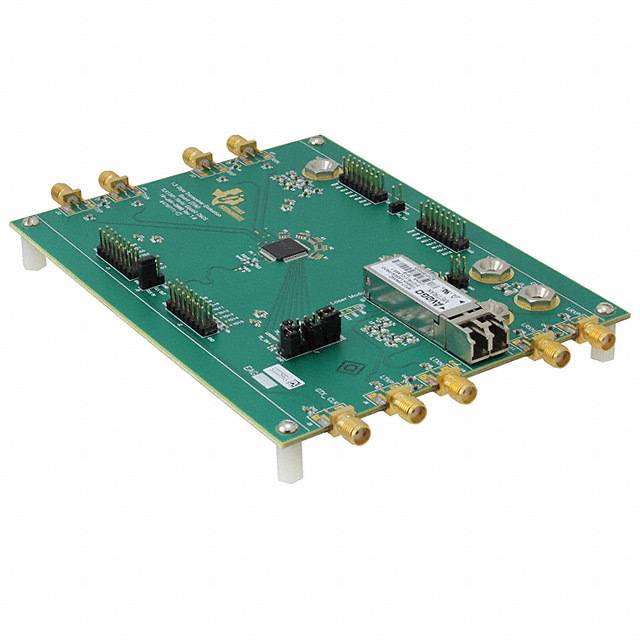

The TLK1501 serdes evaluatiom module EVM board is used to evaluate the TLK1501 device VQFP and associated optical interface NetLight™ for point-to-point data transmission applications.

The board enables the designer to connect 50 ohm parallel buses to both transmitter and receiver connectors. The TLK1501, using high speed PLL technology, serializes, encodes 8 b/10 b and transmits data along one differential pair. The receiver part of the device deserializes, decodes and presents data on the parallel bus. The high speed up to 1.6 Gbps data lines interface to four 50 ohm controlled-impedance SMA connectors. The designer can either use this copper interface directly or loop back to the laser module section for an optical interface not provided.
