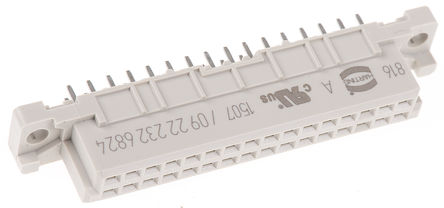

09222326824
Harbus 32 位置 2.54mm 间距 母头 直 DIN41612 连接器
Harting DIN 41612 补充类型 2B 背板信号
Harting DIN 41612 补充类型 2B 背板信号连接器设计用于印刷电路板应用,每个触点最大 2A。 DIN 41612 补充类型 2B 印刷电路板背板信号连接器耐磨耐用,具有较长的配接寿命,可为许多电子信号连接器设计应用提供经济的解决方案。
工作温度 -55 至 +125°C
每个触点最大 2A
测试电压 1kV
触点电阻高达 20mΩ
热塑树脂 - 玻璃纤维填充
铜合金触点
端接方法 - 焊接
### DIN41612 - 系列
DIN 41612连接器用于将所有的 19in. Eurocard 支架系统相互连接起来。
得捷:
CONN DIN RCPT 32POS PCB
欧时:
### Harting DIN 41612 补充类型 2B 背板信号连接器Harting DIN 41612 补充类型 2B 背板信号连接器设计用于印刷电路板应用,每个触点最大 2A。 DIN 41612 补充类型 2B 印刷电路板背板信号连接器耐磨耐用,具有较长的配接寿命,可为许多电子信号连接器设计应用提供经济的解决方案。工作温度 -55 至 +125°C 每个触点最大 2A 测试电压 1kV 触点电阻高达 20mΩ 热塑树脂 - 玻璃纤维填充 铜合金触点 端接方法 - 焊接 ### DIN41612 - 系列DIN 41612连接器用于将所有的 19in. Eurocard 支架系统相互连接起来。触点材料:1 级和 2 级: | 黄铜 | | ---|---|---|--- 触点材料:3 级 | 磷青铜 | | 电镀 | 镀金镍 | | 绝缘体 | 玻璃填充 PBTB | | 绝缘电阻 MΩ | ≥ 106 | | 触点电阻 mΩ | ≤ 15 | | 温度范围 °C | -65 至 +125 | | 触点间的测试电压 kV rms | 1 | | 最大额定电流 A | 2 | | 每路插入力/拔出力 g | 95 | | 插拔次数 | 1 级 | 2 级 | 3 级 机械 | 500 | 400 | 50 工业大气(天) | 21 天 | 4 天 | - 尺寸 mm --- | 固定中心 | 总长 | 宽度 | | 厚度 | | | B 型 | C 型 | 插头 | 88.9x2.5 直径 | 94 | 8.5 | 11.1 | 13 套筒扳手 | 90x2.8 直径 | 95 | 8.1 | 10.6 | 11.6
立创商城:
09222326824
贸泽:
DIN 41612 连接器 DIN SIG 2B032FS-2 9C1-2
e络盟:
连接器, DIN 41612, 母, 32路, 2排
艾睿:
Communicate between multiple devices by linking them to this din 41612 09222326824 backplane connector from Harting. This F connector&s;s 32 contacts that are made out of copper alloy and plated with gold over nickel. It has a female type gender. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 2 A. 09222326824 is housed in thermoplastic. This product is 54.9 mm long, 11.6 mm tall and 8 mm deep. It uses the solder termination method. This backplane connector has an operating temperature of -55 to 125 °C.
Allied Electronics:
Connector DIN-Signal solder 32-way f
TME:
Plug; DIN 41612; type 2B; female; PIN:32; a+b; THT; straight; 2A
Verical:
Conn DIN 41612 F 32 POS 2.54mm Solder ST Thru-Hole
