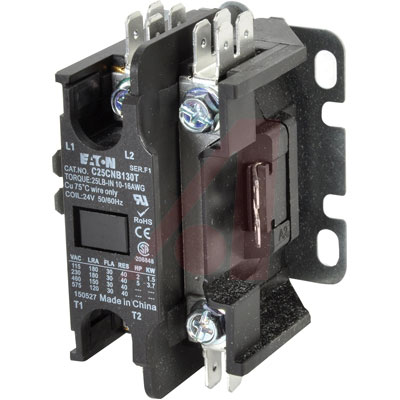

C25CNB130T

EATON CUTLER HAMMER  C25CNB130T  紧凑型线圈, 1路, 分流, 30A, 四路, 快接式, 24VAC

Cutler-Hammer® 25-40 A, single- and double-pole, Type C25 contactors from Eaton"s electrical business feature a compact, efficient design with a low VA coil and straight-through wiring. New contactor housing design effectively limits dust and other contaminants from entering the magnet structure which reduces or eliminates noise. These economically priced, UL recognized/ CSA certified, ampere rated devices are well suited for use in heating/air conditioning, refrigeration, data processing and food service applications.

**Features:**

* Insulation Voltage: 690 V

* Current Rated and HP/kW Rated

* Contacts: Double Break

* Magnet Coil: Class F, 155°C

* Contact Arc Covers Are Standard on All Contactors

* Standard Power Terminals 5⁄16" Hex Washer Head Screws and Quad 4 Quick Connect Terminals on Each Line and Load Terminations

* Contactors are Marked with Line and Load Terminal Designations

* Operating Temperature Range: –13 to 158°F –25 to +70°C

* Terminal Wire Range — Hex Washer Head Screws: 16-10 AWG, 30 Lb.-In. Torque Rating

* Mounting Position: Vertical, Horizontal or Tabletop

* UL Recognized, CSA Certified, IEC 60947-4-1, EN 60947-4-1, ARI 780/790 Standard, RoHs Compliance
