52601-S14-4LF

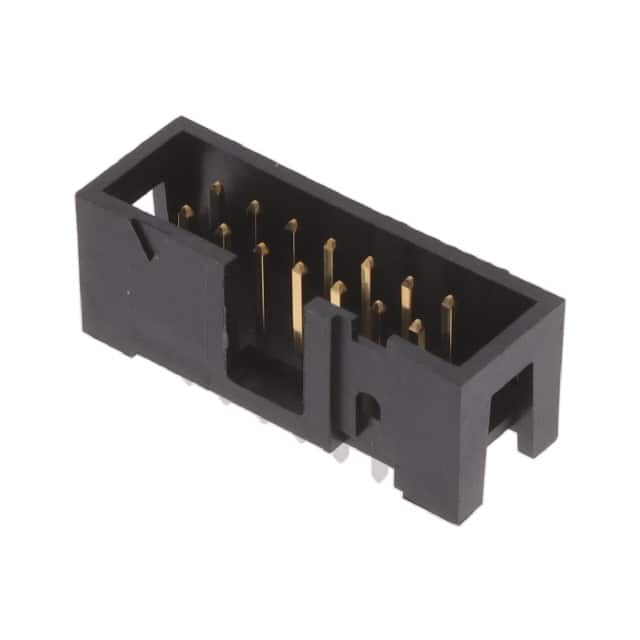

This shrouded 52601-S14-4LF header connector from FCI is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 500 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. The item will be shipped in tray orientation. This product is 25.14 mm long, 9.27 mm tall and 8.76 mm deep. It uses the solder termination method. 52601-S14-4LF is housed in black thermoplastic. This connector has an operating temperature of -65 to 125 °C.

Connector Header Through Hole 14 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 14POS 2.54MM

艾睿:
This shrouded 52601-S14-4LF header connector from FCI is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 500 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. The item will be shipped in tray orientation. This product is 25.14 mm long, 9.27 mm tall and 8.76 mm deep. It uses the solder termination method. 52601-S14-4LF is housed in black thermoplastic. This connector has an operating temperature of -65 to 125 °C.
