734-234

4 位置 3.81 mm 直 插头 通孔 接线端子

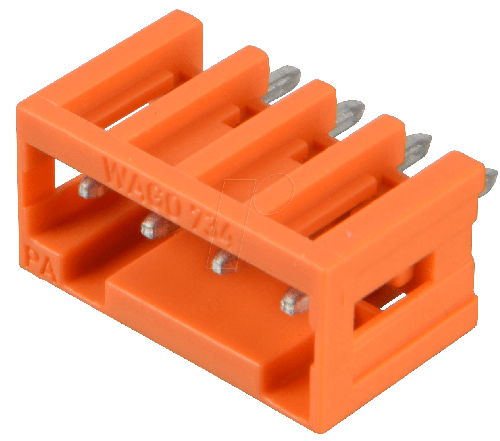

The from Wago is an orange colour, 4-pole male header for PCBs with 3.81mm 0.15inch pin spacing and 0.6mm x 0.6mm press-in pins. It is 100% protected against mismating with closed end, only mating halves with the same pole number can be connected together. The connector has tin plated copper alloy contacts and polyamide 66 PA 66 insulation. It has 0.9g weight and 17.33mm 0.682inch x 13.2mm 0.52inch x 8.5mm 0.335inch dimension W x H x D. Coding options are available. The connector has ABS, CCA, CSA, KEMA and UR E45171 Underwriters Laboratories Inc approvals.

.

Press-in technology

.

Vertical PCB mounting

.

Press-in pin dimension is 0.6mm x 1.2mm

.

Ratings per  IEC/EN 60664-1 standards and flammability class per UL94  V0

.

Robust housing, shock and vibration resistant

.

Rated impulse voltage of 2.5KV III/3, 2.5KV III/2 and 2.5KV II/2

.

Rated voltage of 160V III/3, 160V III/2, 320V II /2 and rated current of 8A

.

Limit temperature range from -45°C to 85°C
