H2011U2F205NQ

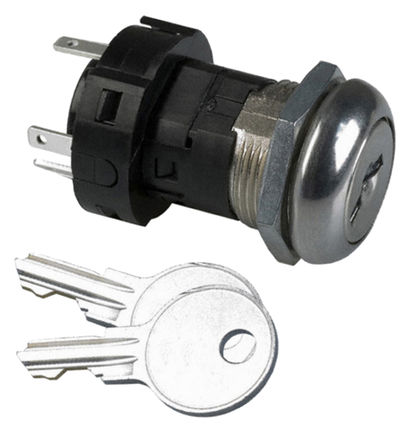

C&K Tumbler Power Switchlocks - H SeriesA selection of 4 tumbler power switchlocks from C & K. They have positive detent, snap together assembly and are suitable for power switching.Material: Zinc alloy with stainless steel facing Supplied with two nickel plated brass keys Switch Housing: 6/6 nylon ### 钥匙开关产品规格 --- 触点额定值 | 30 V 直流 100 mA 机械寿命 | ´ 104 次 测试电压 | 1000 V 1 分钟（主要接线端子） 分度角 | 90° 焊接温度 | 工作温度范围 | -20°C 至 +55°C

With just a turn a key, you can power on and off your system and keep it safe from non-authorized users by using this tumbler lock Keylock switch from C&K Components. This device has a maximum current rating of 12 A @ 125VAC. It has a DPDT configuration. This switch key has an operating temperature range of -30 °C to 85 °C. The H2011U2F205NQ switch key has a quick connect termination style. This product is 22.35 mm long, 42.21 mm tall and 22.35 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 125@CSA/UL VDC.
