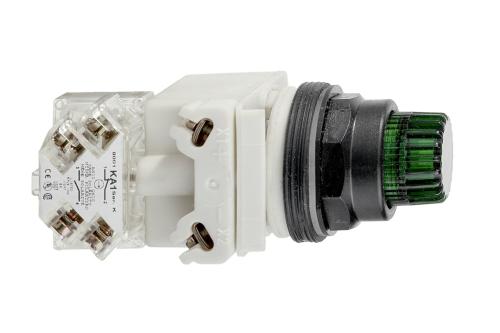

9001SK2L1GH13

Pushbutton, Illum"d Green, Momentary, 1NO-1NC, Transformer Lamp 30mm, 10A, 600V

**The 30 mm Offering for Difficult Environments**

Dedicated to applications of heavy industry and infrastructure, the 30 mm offer guarantees you long-term reliability — thanks to the high quality and robustness of the operators even in extreme environments. Easy to obtain everywhere in the world, easy to integrate and use, this offer is the perfect complement to your Human Machine Interface.

**Features**

* Universal Color Caps Reduce Inventory and Provide More Flexibility

* Single Screw Mounting of Contact Blocks for Quick Installation

* Color Coded Contact Blocks for Ease of Use and Troubleshooting

* Wide Variety of Operating Heads

* Oil Tight, Water Tight and Dust Tight Indoor/Outdoor

* Fully Assembled Units

* Complete with 1 NO/1NC Contact Block

* 30 mm Diameter Mounting Hole with Positioning Notch

* Use 6 VAC Lamp, ANSI 755

* Approvals UL Listed File Number E42259 CCN NKCR - CSA Certified File Number LR25490 Class 3211 03 - CE Marked

**Specifications**

* Ampere Rating: 10 A

* Bezel Material: Plastic

* Contact Material: Silver Alloy

* Enclosure Rating: NEMA 4/4X/13

* Light Module Supply Voltage: 110/120 VAC @ 50/60 Hz

* Light Module Type: Transformer

* Maximum Voltage Rating: 600 V

* Terminal Type: Screw Clamp

* Size: 30 mm

* Type: SK
