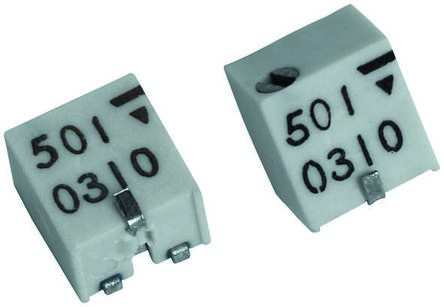

TSM4YJ502KB25

4mm 11 转密封 250mW TSM 4YJ 系列小尺寸，具备最佳封装密度 专业等级 低触点电阻变化和极好的稳定性 适用于手动和自动操作 完全密封，符合 IP67 汽相和回流焊接 提供覆盖范围Resistive Element | Cermet ---|--- Power Rating | 250mW at 85°C Limiting Element Voltage | 200V linear law Tolerance Standard | ±10% Temperature Coefficient | ±100ppm/°C Contact Resistance Variation | 1% or 3 ohms Electrical Travel | 11 turns ±2 Operating Torque | 1 Ncm max. Rotational Life Electrical & Mechanical | 100 cycles - rated power Soldering Temperature | Vapour phase 215°C/20 secs. Reflow: 230°C/20 secs.Do not exceed peak 260°C   |     |   Operating Temperature Range | -55°C to +125°C Dimensions | W. 5.0 D.5.0 H. 3.7mm ### 多转贴片电容器

4mm 11 转密封 250mW TSM 4YJ 系列

小尺寸，具备最佳封装密度

专业等级

低触点变化和极好的稳定性

适用于手动和自动操作

完全密封，符合 IP67

汽相和回流焊接

提供覆盖范围

Resistive Element | Cermet

---|---

Power Rating | 250mW at 85°C

Limiting Element Voltage | 200V linear law

Tolerance Standard | ±10%

Temperature Coefficient | ±100ppm/°C

Contact Resistance Variation | 1% or 3 ohms

Electrical Travel | 11 turns ±2

Operating Torque | 1 Ncm max.

Rotational Life Electrical & Mechanical | 100 cycles - rated power

Soldering Temperature | Vapour phase 215°C/20 secs. Reflow: 230°C/20 secs.Do not exceed peak 260°C

  |

  |

Operating Temperature Range | -55°C to +125°C

Dimensions | W. 5.0 D.5.0 H. 3.7mm
