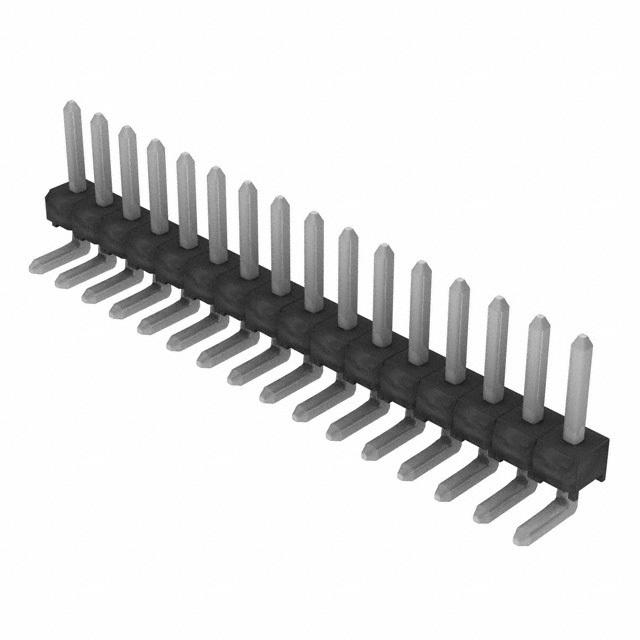

TSW-116-08-T-S-RA

SAMTEC TSW-116-08-T-S-RA Board-To-Board Connector, 2.54mm, 16Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔，直角 16 位置 0.100"（2.54mm）

欧时:
.100" Terminal Strip

得捷:
CONN HEADER R/A 16POS 2.54MM

艾睿:
As an added safety precaution, the unshrouded TSW-116-08-T-S-RA header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 16 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 1-row connector. It has a header type gender. It has a maximum voltage rating of 450 VAC. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. This product is 40.64 mm long, 3.02 mm tall and 9.9 mm deep. TSW-116-08-T-S-RA is housed in black polyester.

安富利:
Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Side Entry Thru-Hole Bulk

Newark:
# SAMTEC  TSW-116-08-T-S-RA  Board-To-Board Connector, 2.54 mm, 16 Contacts, Header, TSW Series, Through Hole, 1 Rows
