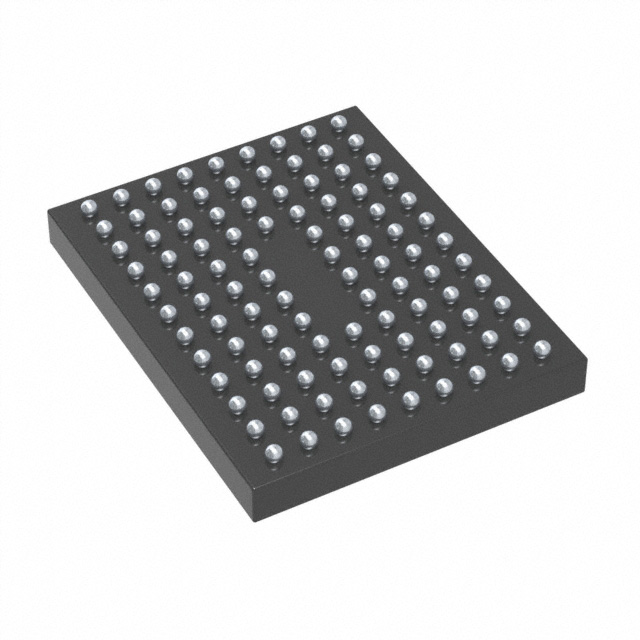

STM32L152VEY6TR

ARM Cortex-M3 32MHz 闪存：512K@x8bit RAM：80KB

The ultra-low-power STM32L151xE and STM32L152xE devices incorporate the connectivity power of the universal serial bus USB with the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a frequency of 32 MHz 33.3 DMIPS, a memory protection unit MPU, high-speed embedded memories Flash memory up to 512 Kbytes and RAM up to 80 Kbytes, and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

The STM32L151xE and STM32L152xE devices offer two operational amplifiers, one 12-bit ADC, two DACs, two ultra-low-power comparators, one general-purpose 32-bit timer, six general-purpose 16-bit timers and two basic timers, which can be used as time bases.

Moreover, the STM32L151xE and STM32L152xE devices contain standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2S, three USARTs, two UARTs and an USB. The STM32L151xE and STM32L152xE devices offer up to 34 capacitive sensing channels to simply add a touch sensing functionality to any application.

They also include a real-time clock and a set of backup registers that remain powered in Standby mode.

Finally, the integrated LCD controller except STM32L151xE devices has a built-in LCD voltage generator that allows to drive up to 8 multiplexed LCDs with the contrast independent of the supply voltage.

The ultra-low-power STM32L151xE and STM32L152xE devices operate from a 1.8 to 3.6 V power supply down to 1.65 V at power down with BOR and from a 1.65 to 3.6 V power supply without BOR option. They are available in the -40 to +85 °C and -40 to +105 °C temperature ranges. A comprehensive set of power-saving modes allows the design of low-power applications.

**Key Features**

.

Ultra-low-power platform

.

1.65 V to 3.6 V power supply

.

-40 °C to 105 °C temperature range

.

290 nA Standby mode 3 wakeup pins

.

1.11 µA Standby mode + RTC

.

560 nA Stop mode 16 wakeup lines

.

1.4 µA Stop mode + RTC

.

11 µA Low-power run mode down to 4.6 µA in Low-power sleep mode

.

195 µA/MHz Run mode

.

10 nA ultra-low I/O leakage

.

8 µs wakeup time

.

Core: ARM® Cortex® -M3 32-bit CPU

.

From 32 kHz up to 32 MHz max

.

1.25 DMIPS/MHz Dhrystone 2.1

.

Memory protection unit

.

Up to 34 capacitive sensing channels

.

CRC calculation unit, 96-bit unique ID

.

Reset and supply management

.

Low-power, ultrasafe BOR brownout reset with 5 selectable thresholds

.

Ultra-low-power POR/PDR

.

Programmable voltage detector PVD

.

Clock sources

.

1 to 24 MHz crystal oscillator

.

32 kHz oscillator for RTC with calibration

.

Internal 16 MHz oscillator factory trimmed RC+/-1% with PLL option

.

Internal low-power 37 kHz oscillator

.

Internal multispeed low-power 65 kHz to 4.2 MHz oscillator

.

PLL for CPU clock and USB 48 MHz

.

Pre-programmed bootloader

.

USB and USART supported

.

Up to 116 fast I/Os 102 I/Os 5V tolerant, all mappable on 16 external interrupt vectors

.

Memories

.

512 Kbytes of Flash memory with ECC with 2 banks of 256 Kbytes enabling RWW capability

.

80 Kbytes of RAM

.

16 Kbytes of true EEPROM with ECC

.

128-byte backup register

.

LCD driver except STM32L151xE devices up to 8x40 segments, contrast adjustment, blinking mode, step-up converter

.

Rich analog peripherals down to 1.8 V

.

2x operational amplifiers

.

12-bit ADC 1 Msps up to 40 channels

.

12-bit DAC 2 ch with output buffers

.

2x ultra-low-power comparatorswindow mode and wake up capability

.

DMA controller 12x channels

.

11x peripheral communication interfaces

.

1x USB 2.0 internal 48 MHz PLL

.

5x USARTs

.

Up to 8x SPIs 2x I2S, 3x 16 Mbit/s

.

2x I2Cs SMBus/PMBus

.

11x timers: 1x 32-bit, 6x 16-bit with up to 4 IC/OC/PWM channels, 2x 16-bit basic timers, 2x watchdog timers independent and window

.

Development support: serial wire debug, JTAG and trace
