CUB5PR00

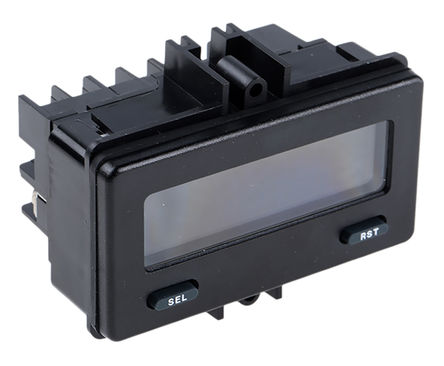

CUB5 - process display, 12 mm character height### Accessories:Small and compact display Free scaling Relay output module RS stock no.: 492-7296 Transistor output module RS stock no.: 653-7738 RS485 serial interface RS stock no.: 656-5698 RS232 serial interface RS stock no.: 656-5682 Power supply 12 V 400 mA RS stock no.: 492-7331 DC voltage input range: | 0 → 10 Vdc ---|--- DC current input range: | 0 → 20 mA, 0 → 50 mA Display capacity: | 5-digit LCD, 12 mm high, can be switched between standard or red/green with backlight Power supply: | 9 → 28 Vdc Electrical connection: | Screw terminals Housing material: | Plastic Protection rating: | IP65 Dimensions W x H x D: | 75 x 39 x 44 mm Weight: | approx. 100 g Ambient temperature: | -35 °C → +75 °C ### 认可CE### 过程指示器

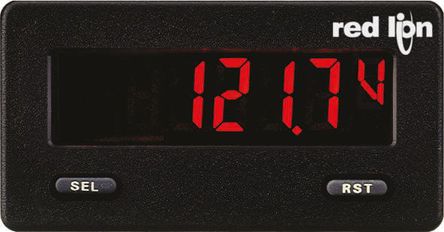

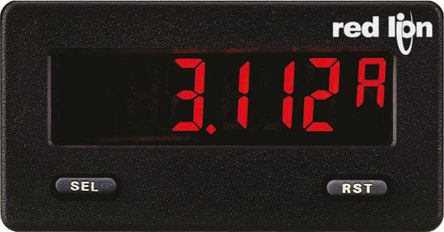

The CUB5 Series is a range of miniature analog meters that offer communication and control capability. Whether the input is DC Current, DC Voltage, Process Signals, RTD or Thermocouples, there is a CUB5 model to handle it. The communication and control capability are accomplished with plug-in option cards which allow the meters to be upgraded now or in the future. Two choices for communication are available, RS232 or RS485. Control capability is accomplished with two 5 amp relays. Stop throwing those meter away when changes occur, start using CUB5 meters, the last meter you will need to buy.

**Features:**

* Reflective or Selectable Red/Green Backlight

* 0.48" High Digits 12.2 mm LCD Display

* Programmable Decimal Point

* Front Panel and Remote Reset

* Communication Capability

* Control Capability

**Specifications:**

* Power Supply: 9 to 28 VDC

* DC Current: 200 μA to 200 mA

* DC Voltage: 200 mV to 200 V

* Process Signals: 04 to 20 mA or 0 - 10 VDC

* RTD — Pt385, Pt392, Ni672, Cu427

* Thermocouple — T, E, J, K, R, S, B, N, and mV

* RS232 or RS485 Communication Option Cards

* Dual Relay or Dual Sinking Control Capability
