ABC400-1024G
Power One 400W Switch Mode AC-DC Power Supply - ABC400-10XXG SeriesABC400-10XXG series 400W switch mode embedded AC-DC power supplies with a compact design and universal AC voltage input range. These 400W switch mode AC-DC power supplies have a high power density and incorporate interleaved transition mode PFC converter and two-FET forward converter resulting in increased system reliability and efficiency of up to 91%. Typical applications for these 400W switch mode AC-DC power supplies include telecommunication, datacommunication and industrial equipment.Universal AC input voltage of 90 to 264 Vac Active power factor correction Power Good signal High power density of 16 W/in3 High efficiency of up to 91% Over temperature, output voltage, over current and short ciruit protection Compact size: 3.0 W x 1.5 L x 5.0 H inches EMC compliance: Class A, EN55022 FCC Part 15, Sub Part-B Harmonic Emissions: Class A: IEC61000-3-2 ### 注Derate power above 50°C### 认可CSA### 标准UL 60950-1 Second Edition, CSA-C22.2 No. 60950-1-03 Second Edition, IEC 60950-1:2005, EN 60950-1:2006, CE Mark for LVD, CB Approval### Switch Mode - Power One - 30W to 400W High Power Density, Open Frame

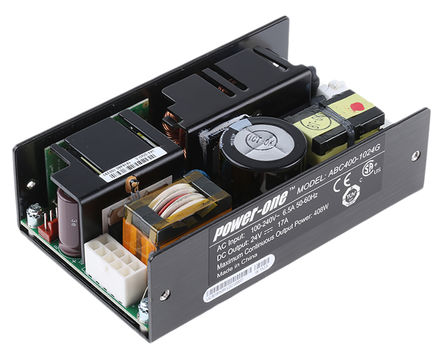

Power One 400W Switch Mode AC-DC Power Supply - ABC400-10XXG Series
ABC400-10XXG series 400W switch mode embedded AC-DC power supplies with a compact design and universal AC voltage input range. These 400W switch mode AC-DC power supplies have a high power density and incorporate interleaved transition mode PFC converter and two-FET forward converter resulting in increased system reliability and efficiency of up to 91%. Typical applications for these 400W switch mode AC-DC power supplies include telecommunication, datacommunication and industrial equipment.
Universal AC input voltage of 90 to 264 Vac
Active power factor correction
Power Good signal
High power density of 16 W/in3
High efficiency of up to 91%
Over temperature, output voltage, over current and short ciruit protection
Compact size: 3.0 W x 1.5 L x 5.0 H inches
EMC compliance: Class A, EN55022 FCC Part 15, Sub Part-B
Harmonic Emissions: Class A: IEC61000-3-2
### 注
Derate power above 50°C
### 认可
CSA
### 标准
UL 60950-1 Second Edition, CSA-C22.2 No. 60950-1-03 Second Edition, IEC 60950-1:2005, EN 60950-1:2006, CE Mark for LVD, CB Approval
