IDG50A-N03-P

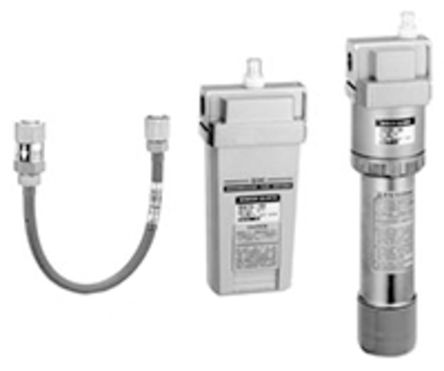

SMC IDG50A-N03-P air dryer. membrane, IDG MEMBRANE AIR DRYER

No power supply is necessary. Wiring labor is not required and there is no need to consider electrical standards, etc. There are no mechanical moving parts as in the case of refrigeration equipment. The membrane air dryer uses hollow fibers composed of a macro molecular membrane through which moisture passes easily, but is difficult for air oxygen and nitrogen to pass through. When humid, compressed air is supplied to the inside of the hollow fibers, only moisture permeates the membrane and moves to the outside due to the pressure difference between the moisture inside and outside of the fibers. The compressed air becomes dry air and continues out of the dryer. Part of the dry air from the outlet side is passed through a very small orifice to reduce the pressure and purge the outside of the hollow fibers. The moisture which permeated to the outside of the hollow fibers is discharged to the atmosphere by this purge air. In this way, the partial pressure outside of the hollow fibers remains low and dehumidification is continuously performed.

**Features:**

* Compact

* Lightweight

* Space-Saving

* Environmentally Friendly Non-Freon

* Power Supply Not Required

* No Vibration or Heat Discharge

* Compatible with Low Dew Points

* Flexible Piping Is Possible IDG1

* IDG1 Has Low Flow Rate Type Tube Configuration Outlet Air Flow: 10 L/Min. ANR

* Use F.R.L Spacer/Mounting Brackets to Assemble with F.R.L Units
