AS5040ASSU

AMS  AS5040ASSU  芯片, 磁性旋转编码器, 10位, SSOP16

可编程磁性旋转编码器，ams AG

欧时:

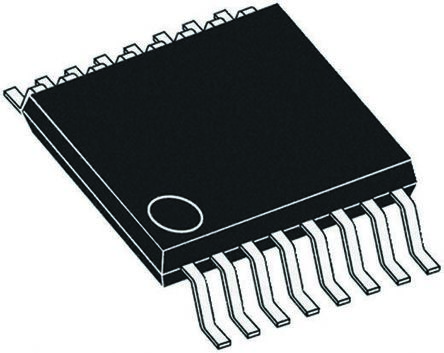

ams AG AS5040ASSU, 10 位霍尔效应旋转编码器集成电路, 16引脚 SSOP封装

e络盟:
芯片, 磁性旋转编码器, 10位, SSOP16

Newark:
The AS5040ASSU is a 10-bit programmable contactless Magnetic Rotary Encoder for accurate angular measurement over a full turn of 360°. It is a system-on-chip, combining integrated hall elements, analog front end and digital signal processing in a single device. To measure the angle, only a simple two-pole magnet, rotating over the centre of the chip, is required. The magnet may be placed above or below the IC. The absolute angle measurement provides instant indication of the magnets angular position with a resolution of 0.35° with 1024 positions per revolution. This digital data is a serial-bit stream and as a PWM signal. An user-programmable incremental output making the chip suitable for replacement of various optical encoders.
