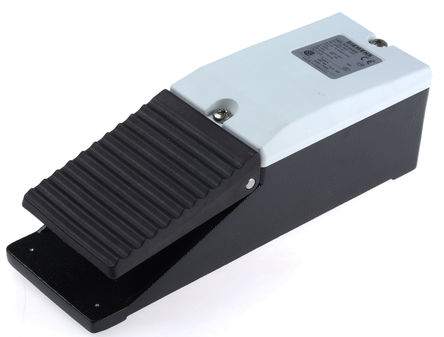

3SE2902-0AB20

3SE2 9 Safety Foot SwitchThe 3SE2 9 safety foot switch is available in a metal enclosure for rugged applications or a plastic enclosure for less harsh environments. These foot switches can be supplied with one or two pedals and with or without a cover.Fixing holes for securing to the floor Latching or momentary-contact versions >10,000,000 operating cycles Temperature rating -25 to +80 °C ### 注The single pedal safety foot switch, stock no. 764-4073, locks on actuation according to EN ISO 13850. After eliminating the hazard, the machine can only be restarted after manually releasing the push button on the top of the enclosure.### 标准IEC 60947-5-1.### 紧急停止脚踏开关

3SE2 9 安全脚动开关

3SE2 9 安全脚动开关装在金属外壳中,用于恶劣应用;或塑料外壳中,用于不太恶劣的环境。这些脚动开关在可提供一个或两个踏板,带或不带盖。

固定孔,用于固定到地板

闭锁或瞬时型触点型号

>10,000,000 次操作循环

额定温度:-25 至 +80 °C

### 注

单踏板安全脚动开关,库存号 764-4073,锁在操作位,符合 EN ISO 13850。消除危险后,机器只能在您松开外壳顶部的按钮后才能重新启动。

### 标准

IEC 60947-5-1。


欧时:
Safety foot switch,single pedal,1N0+1NC


Allied Electronics:
Sirius 3SE2 E-Stop Foot Switch without Cover; 1 Pedal; Momentary Contacts; NO/NC


TME:
Switch: foot; 1-position; SPST-NO + SPST-NC; 6A/230VAC; IP65


3SE2902-0AB20 PDF数据文档
图片 型号 厂商 下载
3SE2902-0AB20 Siemens Semiconductor 西门子
3SE2903-1AA20 Siemens Semiconductor 西门子
3SE2902-0AA20 Siemens Semiconductor 西门子
