ADRF5024BCCZN-R7

Silicon SPDT Switch 100MHz to 40GHz

Product Details

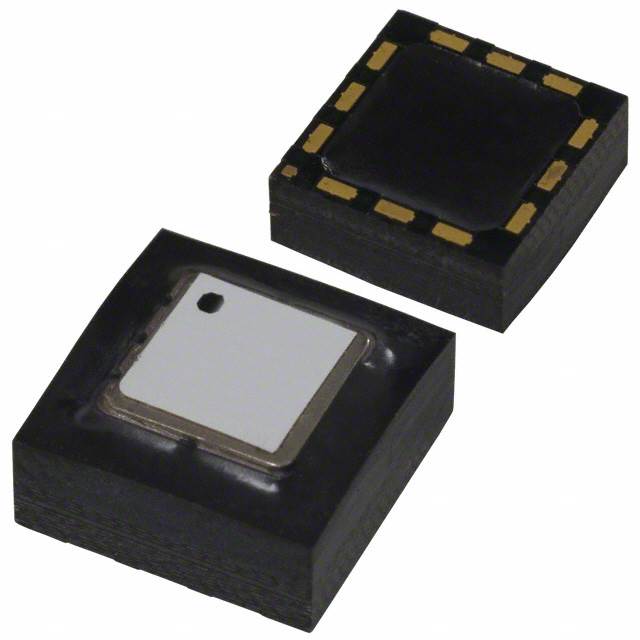

The ADRF5024 is a general-purpose, single-pole, double-throw SPDT switch manufactured using a silicon process. It comes in a 2.25 mm × 2.25 mm, 12-lead land grid array LGA package and provides high isolation and low insertion loss from 100 MHz to 40 GHz.

This broadband switch requires dual supply voltages, +3.3 V and −3.3 V, and provides CMOS/LVTTL logic-compatible control.

**Applications **

.

Test instrumentation

.

Military radios, radars, electronic counter measures ECMs

.

Cellular infrastructure

**

**

### Features and Benefits

.

Ultrawideband frequency range: 100 MHz to 40 GHz

.

Reflective design

.

Low insertion loss: 1.5 dB at 40 GHz

.

High isolation: 37 dB at 40 GHz

.

High input linearity

.

1 dB compression P1dB: 29.4 dBm typical

.

Third-order intercept IP3: 50 dBm typical

.

High power handling: 27 dBm through path

.

ESD sensitivity: TBD

.

No low frequency spurious

.

RF settling time 0.1 dB final RF output: TBD

.

12-lead, 2.25 mm × 2.25 mm land grid array package
