1777798

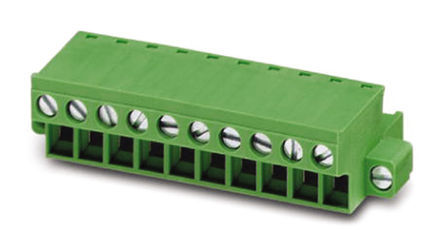

Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 8 路 母 绿色 插头 1777798, 螺钉端接

Conn Terminal Block F 8 POS 5.08mm Screw ST Panel Mount 12A

得捷:
TERM BLOCK PLUG 8POS STR 5.08MM

欧时:
FRONT-MSTB 2,5/ 8-STF-5,08

贸泽:
可插拔接线端子 8 Pos 5.08mm pitch Plug 24-12 AWG Screw

艾睿:
Keep your connections strong with this 1777798 PCB terminal block from Phoenix Contact utilizing clamps and screws. This F connector has 8 contacts that are plated with tin. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. It has a female type gender. It has a straight body orientation. This is a 1-row connector. 1777798 is housed in polyamide. This device has a maximum current rating of 12 A. Its wire is 12-24 AWG. This product is 50.44 mm long, 15 mm tall and 27.5 mm deep. It uses the screw termination method.

Verical:
Conn Terminal Block F 8 POS 5.08mm Screw ST Panel Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 8 - pitch: 5.08 mm - connection method: Front screw connection - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 8 POS 5.08mm Screw ST Panel Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
