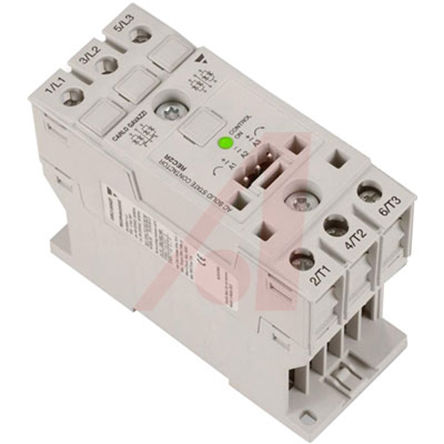

REC2R60D30GKE

Carlo Gavazzi 固态接触器 Carlo GavazziREC 系列为用户提供电机换向继电器解决方案。 随附集成联锁机制，提供短路保护。 高达 3kW 的电动机额定值 DIN 和面板安装选项 瞬时切换 4kVrms 光电隔离 三相，带 2P 切换 固态接触器

REC is an electronic contactor intended to replace the traditional mechanical counterpart used to switch three phase motors. The range includes 2 and 3 phase switching versions up to 4 kW and 600 Vrms. Options with high surge current and I2t for fusing purposes are also available.

The relay switches instantaneously upon application of the control voltage to emulate mechanical relay operation.A covered heatsink resolves any issues with regards to cables running close to the heatsink and eliminates the need for protective earth cabling. The product can be mounted on DIN-rail or on a panel.

Note: Specifications stated at 25°C unless specified.

* AC Electronic Motor Contactor

* Instantaneous Switching

* Three Pole with Two-Phase and Three-Phase Switching Options

* Control Status LED Indication

* Two Control Input Ranges: 15-32 VDC, 90-253 VAC

* Motor Rating Up to 4 kW/5.5 hp

* Rated Operational Voltage Up to 600 VAC

* Opto-Isolation at 4 kVrms

* Mechanical Contactor Resemblance with Covered Heatsink

* DIN-Rail and Panel Mounting
