TSW-116-15-G-S

SAMTEC TSW-116-15G-S Board-To-Board Connector, 2.54mm, 16Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 16 位置 0.100"（2.54mm）

欧时:
HEADER TH 16POS 2.54MM 1 ROW

得捷:
CONN HEADER VERT 16POS 2.54MM

艾睿:

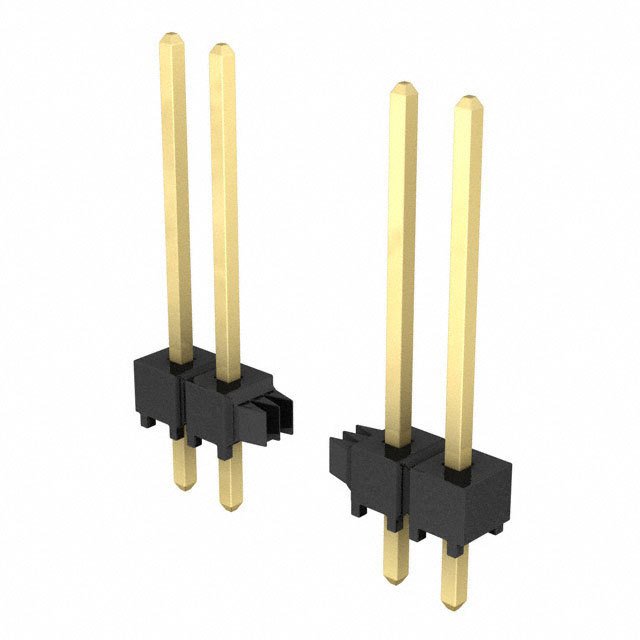

Samtec&s;s unshrouded TSW-116-15-G-S header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This is a 1-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 40.64 mm long, 15.75 mm tall and 2.54 mm deep. TSW-116-15-G-S is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-116-15-G-S  Board-To-Board Connector, 2.54 mm, 16 Contacts, Header, TSW Series, Through Hole, 1 Rows

Online Components:
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Bulk

Electro Sonic:
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Bulk
