S22MD2

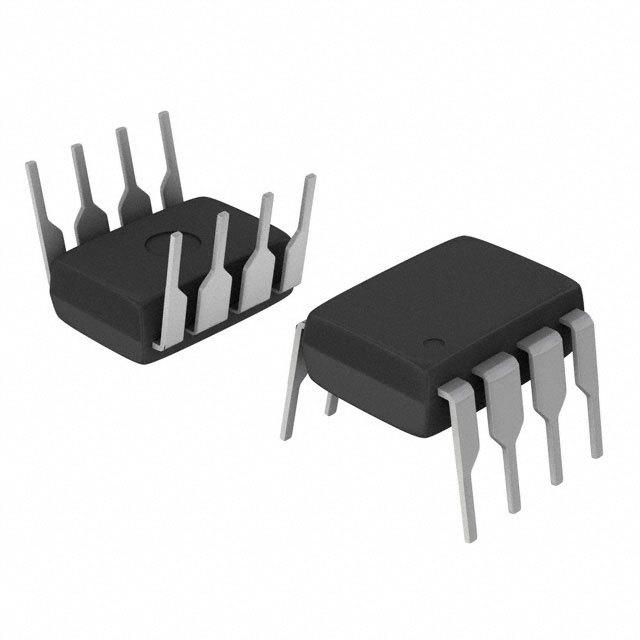

Optocoupler SCR AC-OUT 1CH 600VDRM 7Pin PDIP

❈ Lead forming type I type and taping reel type P type of S22MD1V are also available S22MD1VI/S22MD1P

❈❈ TUV DIN-VDE0884 approved type is also available as an option.

■ Features

1\. High repetitive peak OFF-state voltage

   VDRM : MIN. 600V

2\. Low trigger current

   IFT : MAX. 10mA at RG = 20kΩ

3\. High isolation voltage between input and output

    S22MD1V ••• Viso : 5 000V rms

    S22MD3V ••• Viso : 2 500V rms

    ❈ S22MD1V and S22MD3 are for 200V line.

4\. Recognized by UL, file NO. 64380

■ Applications

1\. ON-OFF operation for a low power load

2\. For triggering high power thyristor and triac
