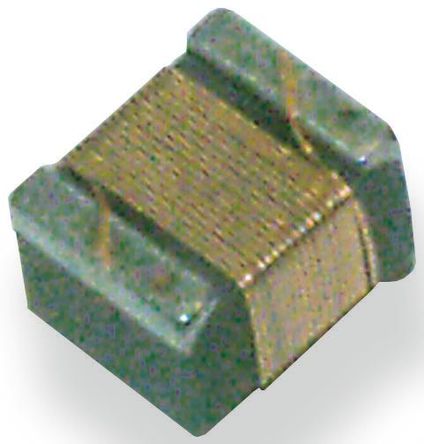

LQW15AN19NJ00D

Murata 0402 LQW15AN_00D 系列线绕电感器 0.01μH - 0.047μH高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 应用：高频率电路，用于无线电信设备，例如蓝牙、GSM、W-LAN。 ### 表面安装 0402 电感器（扼流圈）

固定器

立创商城:
19nH ±5% 270mΩ

得捷:
FIXED IND 19NH 370MA 270MOHM SMD

欧时:
Murata LQW15A 系列 铁氧体芯材 19 nH 绕线贴片电感器 LQW15AN19NJ00D, ±5%容差, 370mA Idc Q:25

艾睿:
Make any circuit look clean and compact using this rf chip LQW15AN19NJ00D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 4.5G Hz. This device is made with wirewound technology. It has a tolerance of 5%. It has an inductance of 19n H. This SMD inductor has a maximum DC current of 370m A with a maximum resistance of 270m Ohm. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep.

安富利:
Ind RF Chip Wirewound 19nH 5% 100MHz 25Q-Factor 370mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 19nH 5% 100MHz 25Q-Factor 370mA 270mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.019uH 5% 100MHz 25Q-Factor Non Magnetic 0.37A 0.27Ohm DCR 0402 T/R
