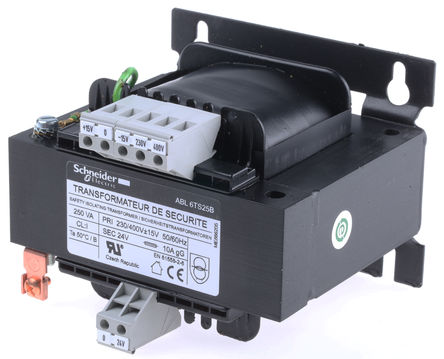

ABL6TS25B
ABL 6TS safety transformersSingle-phase single-winding safety and isolation transformers. Able to supply higher powers on occasion. Feature a panel display to reduce ESD. Screw termination. Plate mounting. Input voltage: | 230 V / 400 Vac ---|--- Input frequency: | 47 → 63 Hz Primary / secondary isolation | 4KV Protection level: | IP 20 Operating temperature: | -20 → +50 °C Ref. | voltage V | power | dimensions | mounting ---|---|---|---|--- Telemecanique | secondary | VA | mm | centres mm ABL6TS02B | 24 V | 25 VA | 66 x 90 x 55 | 55 x 42 ABL6TS04B | 24 V | 40 VA | 78 x 90 x 68 | 56 x 47.5 ABL6TS06B | 24 V | 63 VA | 78 x 90 x 80 | 56 x 56 ABL6TS06U | 230 V | 63 VA | 78 x 90 x 80 | 56 x 56 ABL6TS10B | 24 V | 100 VA | 85 x 94 x 86 | 64 x 65.5 ABL6TS10U | 230 V | 100 VA | 85 x 94 x 86 | 64 x 65.5 ABL6TS16B | 24 V | 160 VA | 106 x 109 x 81 | 80.5 x 63 ABL6TS16U | 230 V | 160 VA | 106 x 109 x 81 | 80.5 x 63 ABL6TS25B | 24 V | 250 VA | 120 x 122 x 85 | 90 x 74.5 ABL6TS25U | 230 V | 250 VA | 120 x 122 x 85 | 90 x 74.5 ABL6TS40B | 24 V | 400 VA | 136 x 140 x 120 | 104 x 87 ABL6TS40U | 230 V | 400 VA | 136 x 140 x 120 | 104 x 87 ABL6TS63B | 24 V | 630 VA | 150 x 152 x 138 | 122 x 107.5 ABL6TS63U | 230 V | 630 VA | 150 x 152 x 138 | 122 x 107.5 ABL6TS100U | 230 V | 1 KVA | 174 x 180 x 146 | 135 x 111.5 ABL6TS160U | 230 V | 1.6 KVA | 174 x 221 x 167 | 135 x 138 ABL6TS250U | 230 V | 2.5 KVA | 198 x 335 x 145 | 125 x 117 ### 标准 IEC 61558-2-6 , EN61558-2-6### 层压框架，交流初级电压为 230V，75VA 至 200VA（多抽头）底板安装、框架结构的低压电源变压器，带有单个 230V 交流、50/60Hz 初级绕组。双节线圈架 全屏蔽线圈架 完全浸漆 多孔框架固定 焊片终端 100% 电气和绝缘试验 按照 BS3535 和 EN 60 742 测试
ABL 6TS safety transformers
Single-phase single-winding safety and isolation transformers.
Able to supply higher powers on occasion.
Feature a panel display to reduce ESD.
Screw termination.
Plate mounting.
### 标准
IEC 61558-2-6 , EN61558-2-6
### 层压框架，交流初级电压为 230V，75VA 至 200VA（多抽头）
底板安装、框架结构的低压电源变压器，带有单个 230V 交流、50/60Hz 初级绕组。
双节线圈架
全屏蔽线圈架
完全浸漆
多孔框架固定
焊片终端
100% 电气和绝缘试验
按照 BS3535 和 EN 60 742 测试
欧时:
TRANSFORMER, ABL6TS25B
