EKMH451VNN471MA50T

470uF ±20% 450V 1720mA Φ35mm

铝电解器 径向，Can - 卡入式 529 毫欧 @ 120Hz 105°C 时为 2000 小时

得捷:
CAP ALUM 470UF 20% 450V SNAP

贸泽:
Aluminum Electrolytic Capacitors - Snap In 470UF 450V

艾睿:

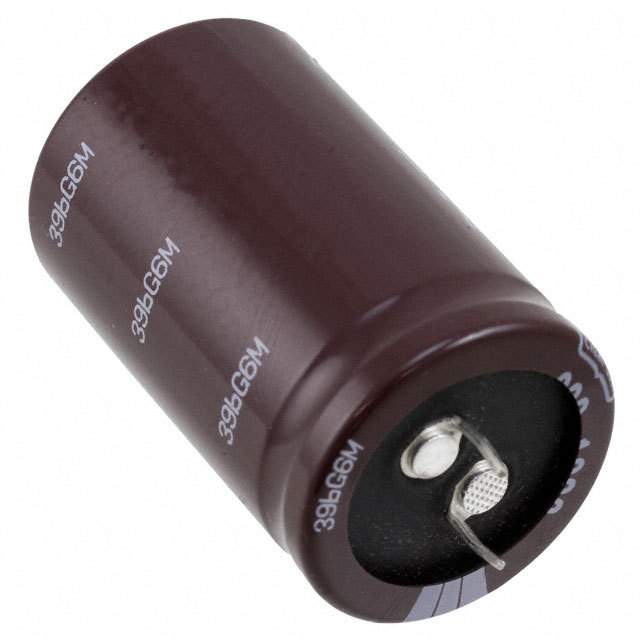

This electrolytic EKMH451VNN471MA50T aluminum capacitor from United Chemi-con has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 50 mm tall with a diameter of 35 mm. It has a tolerance of 20%. This part has a lead diameter of 1 mm and a pitch of 10 mm. Its leakage current is 3000@5Min μA. The EKMH451VNN471MA50T aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 470uF.

Chip1Stop:
Cap Aluminum 470uF 450V 20% 35 X 50mm Snap-In 10mm 0.529 Ohm 1720mA 2000h 105℃

Verical:
Cap Aluminum Lytic 470uF 450V 20% 35 X 50mm Snap-In 10mm 0.529 Ohm 1720mA 2000h 105C

Newark:
# UNITED CHEMI-CON  EKMH451VNN471MA50T  Electrolytic Capacitor, Snap-in, 470 µF, 450 V, KMH Series, ± 20%, Quick Connect, Snap-In, 35 mm

MASTER:
Cap Aluminum Lytic 470uF 450V 20% 35 X 50mm Snap-In 10mm 0.529 Ohm 1720mA 2000h 105°C

Electro Sonic:
Cap Aluminum Lytic 470uF 450V 20% 35 X 50mm Snap-In 10mm 0.529 Ohm 1720mA 2000h 105°C
