BK8610

直流电子负载, 8600 Series, 750 W, 可编程, 0 V, 120 V, 120 A

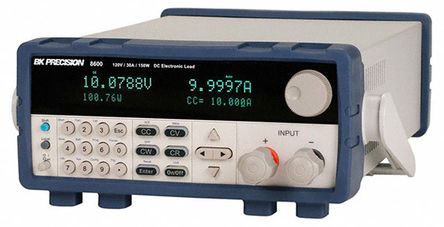

The from B&K Precision is an 8600 series programmable DC electronic load. It provides performance of modular system DC electronic load in a compact bench top form factor. With fast transient operation speeds and high 16bit measurement resolution, this standalone DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC to DC converters, batteries, battery chargers and photovoltaic arrays. It features remote sense analogue current control, monitoring thermostatically controlled and CR-LED mode to simulate the loading behaviour of typical LEDs. The DC load can operate in CC, CV, CR and CW mode and be configured to provide a dynamically changing load to the DC source with fast load switching times. Versatile internal, external and remote triggering options allow the dynamic load behaviour to be synchronized with other events. To ensure the reliability of testing, the 8600 series provides a power-on system self test and numerous protect

.

750W input power, 0V to 120V operating voltage and 0A to 120A rated current

.

110V/220V ±10%, 50Hz/60Hz AC input and 0°C to 40°C operating temperature

.

EN61010-1:2001, EU low voltage directive 2006/95/EC approved

.

OVP/OCP/OPP/OTP including local and remote reverse voltage LRV/RRV protection

.

Built-in battery test function with voltage level, capacity level and timer stop conditions

.

16bit voltage and current measurement system providing 1mV/0.1mA resolution

.

List mode function, transient mode up to 25KHz in CC mode

.

Store and recall up to 100 setups Adjustable slew rate in CC mode

.

Flexible triggering options via front panel, external input, timer or bus

.

Dimension is 485mm x 147mm x 621mm W x H x D and weight is 24.6Kg

To minimize shock hazard, the instrument chassis and cabinet must be connected to an electrical safety ground.

The instrument is designed to be used in office type indoor environments.
