T 3260 018

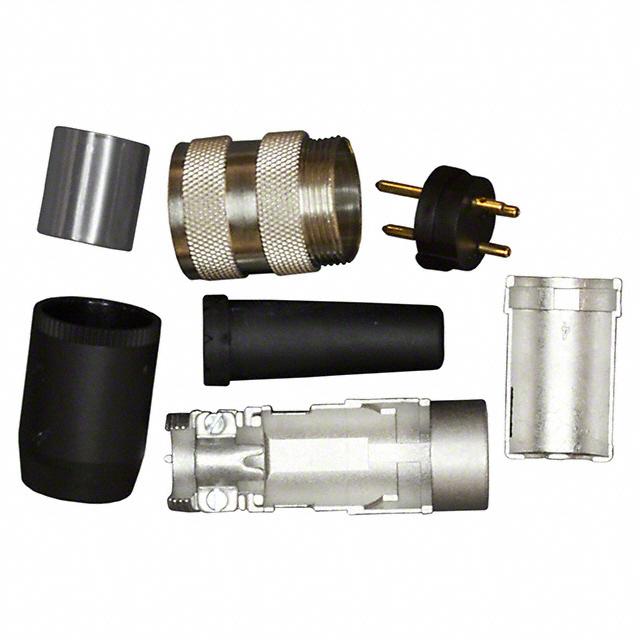

AMPHENOL TUCHEL T 3260 018 圆形连接器, 公, 3路, 电缆安装

Male Cable Connector, Rated Voltage 300 V, Rated Current 5 A

** Materials:** Housing — Die-cast, nickel-plated; Dielectric — Thermoplastic; Contact Plating — Silver or gold. ** Current Rating:** 5 A, except 3 A for 12 and 14 contact. ** Voltage Rating:** 300 V, except 150 V for 5S, 7 DIN, 8, 12 and 14 contact. Cable connector length — approximately 2.65". Allied lists solder termination types. Crimp type is available by special order. ** Cable Outlet:** 6 mm. ** Temperature Rating:** –40 to +85°C.

Cable connector length is approximately 2.65 inches.

* UL File Number: E63093, IEC529, DIN40-450; Rated IP40

* Internal Metal Strain Relief with Half Shell Construction and Snap-In Latching

* Complete EMI Shielding in Fully Mated and Locked Position

* Metal Threaded Coupling ACC to IEC130-9

T 3260 018详细参数

T 3260 018 PDF数据文档

图片	型号	厂商	下载
	T 3260 018	Amphenol 安费诺
	T 3201 001	Amphenol 安费诺
	T 3262 000	Amphenol 安费诺
	T 3260 001	Amphenol 安费诺
	T 3277 000	Amphenol 安费诺
	T 3278 501	Amphenol 安费诺

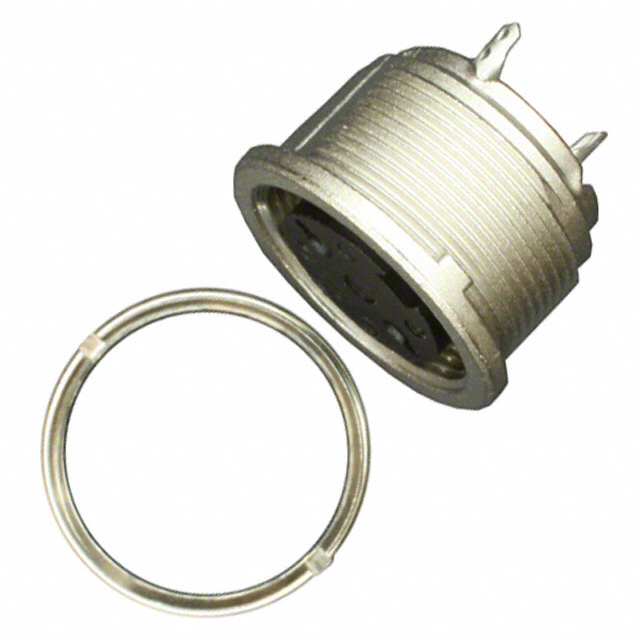

	T 3203 018	Amphenol 安费诺

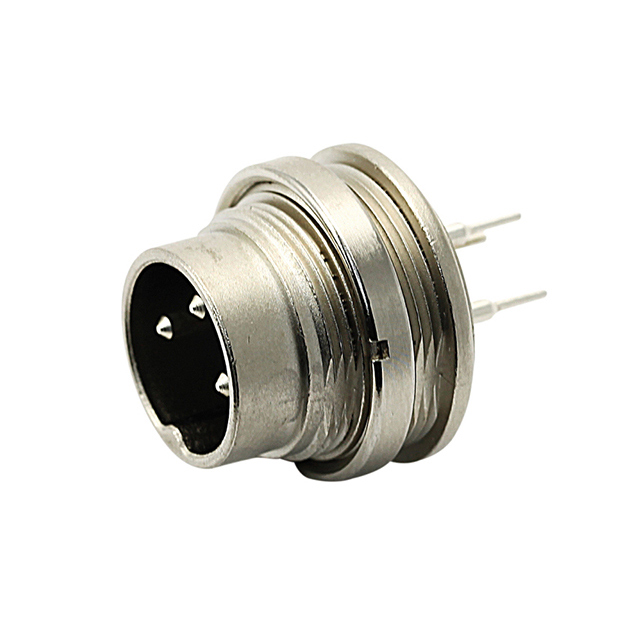

	T 3262 400	Amphenol 安费诺
