ISL29010IROZ-T7

ADC,增益设置,I2C接口

The ISL29010 is an integrated light sensor with I2C interface. It has an internal signed15-bit integrating type ADC designed based on the charge-balancing conversion technique. This ADC is capable of rejecting 50Hz and 60Hz flicker caused by artificial light sources. The lux range select feature allows the user to program the lux range for optimized counts/lux.

In normal operation, power consumption is typically 250µA. Furthermore, a power-down mode can be controlled by software via the I2C interface, reducing power consumption to less than 1µA.

Designed to operate on supplies from 2.5V to 3.3V, the ISL29010 is specified for operation over the -40°C to +85°C ambient temperature range.

Features

• Range select via I2C

   - Range 1 = 0 lux to 2,000 lux

   - Range 2 = 0 lux to 8,000 lux

   - Range 3 = 0 lux to 32,000 lux

   - Range 4 = 0 lux to 128,000 lux

• Human eye response 540nm peak sensitivity

• Temperature compensated

• Signed 15-bit resolution

• Adjustable resolution: up to 20 counts per lux

• 1 bit I2C address selection

• Simple output code, directly proportional to lux

• IR + UV rejection

• 50Hz/60Hz rejection

• 2.5V to 3.3V supply

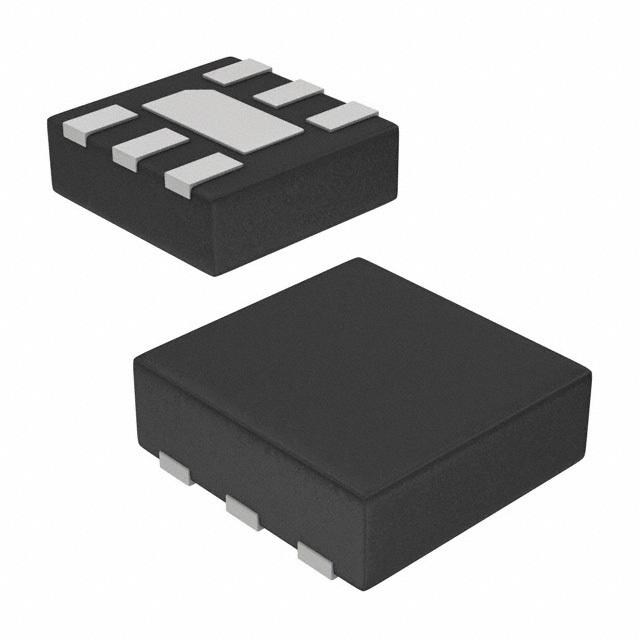

• 6 Ld ODFN 2.1mmx2mm

• Pb-free RoHS compliant

• Operating temperature range: -40°C to +85°C

Applications

• Display and keypad backlight dimming for

   - Mobile Devices: Smart phone, PDA, and GPS

   - Computing devices: Notebook PC, UMPC web pod

   - Consumer devices: LCD-TV, digital picture frame, and digital cameras

• Industrial and medical light sensing
