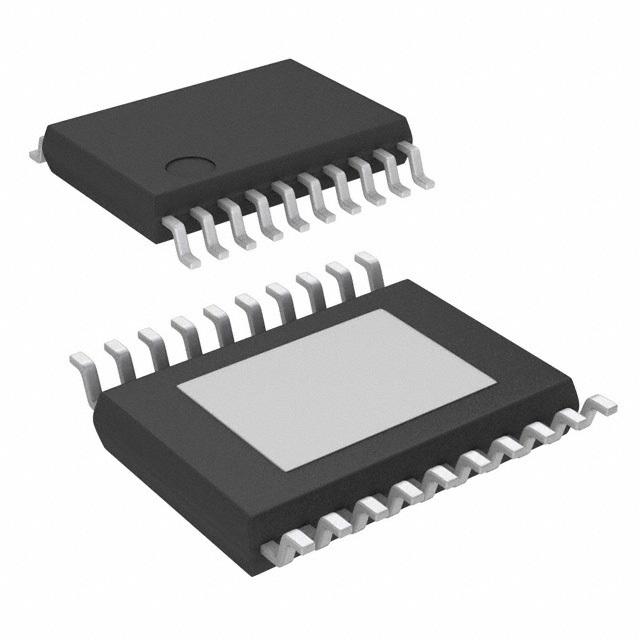

TPS75201MPWPREP

快速瞬态响应2 -A低压差带复位电压稳压器 FAST-TRANSIENT-RESPONSE 2-A LOW-DROPOUT VOLTAGE REGULATOR WITH RESET

The TPS75201M-EP is a low dropout regulator with an integrated power-on reset RESET function. This device is capable of supplying 2 A of output current with a dropout of 210 mV. Quiescent current is 75 µA at full load and drops down to 1 μA when the device is disabled. The TPS75201M-EP is designed to have fast transient response for larger load current changes.

Because the PMOS device operates like a low-value resistor, the dropout voltage is very low typically 210 mV at an output current of 2 A and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading 75 &micr;A typ over the full range of output current, 1 mA to 2 A. These two key specifications yield a significant improvement in operating life for battery-powered systems.

The device is enabled when the enable EN input is connected to a low-level input voltage. This low-dropout LDO device also features a sleep mode; applying a TTL high signal to EN shuts down the regulator, reducing the quiescent current to 1 µA at TJ = 25°C.

The RESET SVS, POR, or power-on reset output of the TPS75201M-EP initiates a reset in microcomputer and microprocessor systems in the event of an undervoltage condition. An internal comparator in the TPS75201M-EP monitors the output voltage of the regulator to detect an undervoltage condition on the regulated output voltage. When the output reaches 95% of its regulated voltage, RESET goes to a high-impedance state after a 100-ms delay. RESET goes to a logic-low state when the regulated output voltage is pulled below 95% i.e., overload condition of its regulated voltage.

The TPS75201M-EP is adjustable programmable over the range of 1.5 V to 5 V. Output voltage tolerance is specified as a maximum of 2% over line, load, and temperature ranges.
